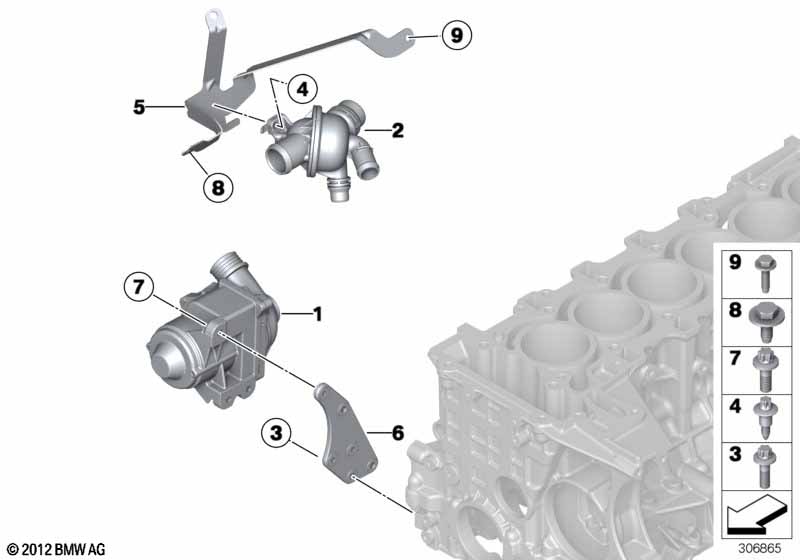

6' F06 Gran Coupé 640i Waterpump - Thermostat
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, electric | 1 | 11519455978 | ||||||
| 02 | Thermostat | 1 | 05/2016 | 11537605431 | ENDED | ||||
| 02 | Thermostat | 1 | 11538671514 | ||||||
| Use counterpart to old component | |||||||||
| 03 | ASA-Bolt | M8X26-8.8 ZNS3 | 3 | 11517602123 | |||||
| 04 | ASA-Bolt | M5X21,8 | 1 | 11537581867 | |||||
| 05 | Holder | 1 | 11537605058 | ||||||
| 06 | Holder | 1 | 11517589205 | ||||||
| 07 | ASA-Bolt | M8X22-8.8 ZNS3 | 3 | 11517602124 | |||||
| 08 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | |||||
| 09 | Hex bolt | M6X25 | 1 | 12907576681 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
