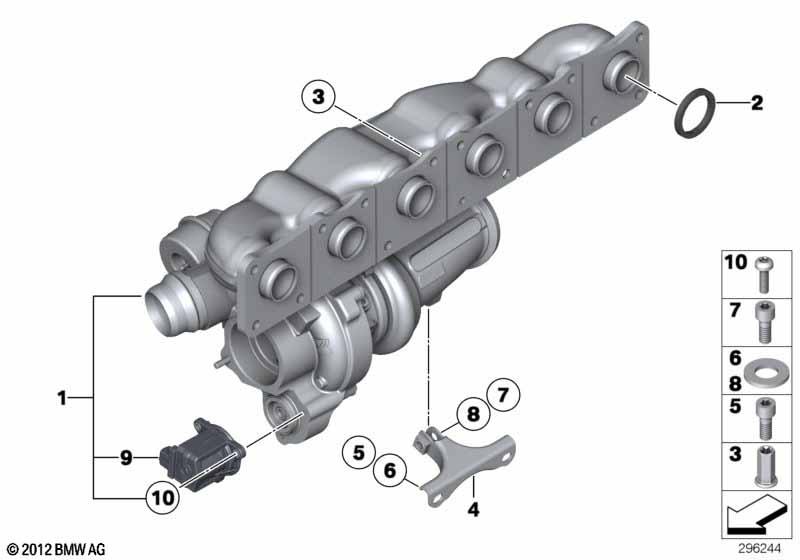

6' F06 Gran Coupé 640i Turbo charger
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
|||||||||
| 01 | Turbocharger with exhaust manifold | 1 | 07/2013 | 11657583908 | |||||
| only in conjunction with | |||||||||
| -- | Oil pipe outlet | 1 | 07/2013 | 11427585403 | +core | ||||
| -- | O-ring | 15X1,78 | 1 | 07/2013 | 11427590577 | ||||
| 01 | Exchange turbocharger with exh.manifold | 1 | 07/2013 | 11657636425 | |||||
| only in conjunction with | |||||||||
| -- | Oil pipe outlet | 1 | 07/2013 | 11427585403 | +core | ||||
| -- | O-ring | 15X1,78 | 1 | 07/2013 | 11427590577 | ||||
| 02 | Gasket ring | 6 | 11657593303 | ||||||
| 03 | Flange nut | 15 | 18407502196 | $2.17 | |||||
| 04 | Support | 1 | 03/2015 | 11657588040 | |||||
| 05 | ISA screw | M8X20-10.9 ZNS3 | 2 | 11657609961 | |||||
| 07 | ISA screw | M8X25 | 1 | 11657609303 | |||||
| 09 | Electr.valve | 1 | 11657601058 | ||||||
| 10 | ISA screw | M6X16-8.8-MK | 3 | 07129905261 | $0.96 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
