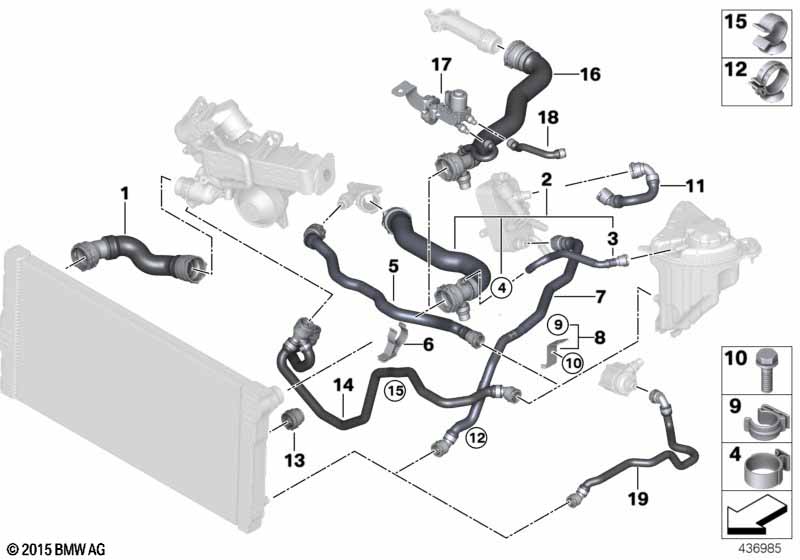

6' F06 Gran Coupé 640d Cooling system coolant hoses
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Hot-climate version |
S823A=No |
|||||||
| 01 | Coolant hose | 1 | 17128511928 | +core | |||||
| 03 | Coolant hose | 1 | 03/2012 | 17127809816 | +core | ||||
| 04 | Hose clamp | L12-14,5 | 1 | 03/2012 | 32411712735 | $0.62 | |||
| 07 | Coolant hose | 1 | 17128513604 | +core | |||||
| 12 | Hose clamp | 1 | 17127807844 | $1.22 | |||||
| 14 | Coolant hose | 1 | 17128512418 | +core | |||||
| 15 | Tubing support | D=17/D=19 | 2 | 13537792950 | $1.08 | ||||
| 16 | Coolant hose | 1 | 03/2012 | 17128517079 | |||||
| 17 | Shut-off valve | 1 | 03/2012 | 17128517077 | |||||
| 18 | Coolant hose | 1 | 03/2012 | 17128517081 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
