6' F06 Gran Coupé 640iX Engine Suspension

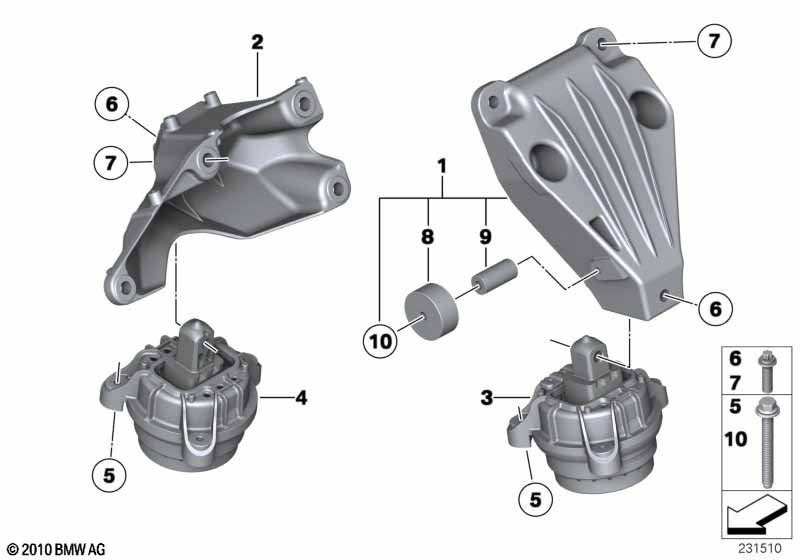

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116796781
02 Engine supporting bracket, right 1 22116781258 +core
03 Engine mount, left 1 22116859845
04 Engine mount, right 1 22116859846
05 Hex bolt M8X60 6 07119905848 $3.82
06 Torx-bolt with washer M12X1,5X40-ZNS3 2 12/2014 07129905834 $4.18 ENDED
06 Star-socket screw BM12X1,5X40-U1- 2 07119908507
07 ASA-Bolt M12X42 8 22116778231 $1.75
08 Bush 1 22116795240
09 Additional weight 1 04/2016 22116788421 ENDED
09 Additional weight 1 22326872625
10 Hex bolt M8X60-U1-ZNS3 1 07119907260
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
