6' F06 Gran Coupé 640iX Hydro steering-oil pipes

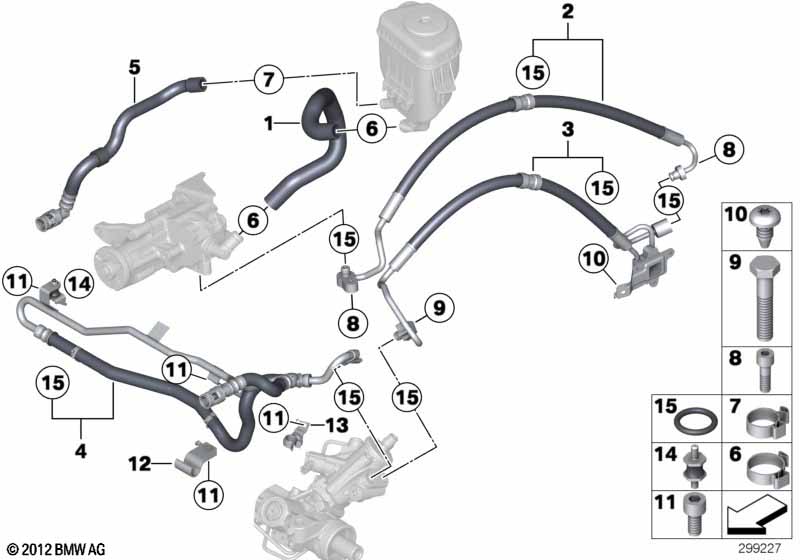

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=No
01 Suction pipe 1 32416799934
02 Expansion hose 1st part 1 32416798235
03 Expansion hose 2nd part 1 32416798236
04 Return pipe 1 32416793550
05 radiator return line 1 32416788813
06 Hose clamp D= 25MM 2 32416763470 $1.27
07 Hose clamp 1 32416751127 $1.12
08 Fillister-head screw M8X25-10.9-ZNS3 2 04/2006 07119905833 ENDED
08 ISA screw M8X25-10.9-ZNS3 2 07129904477 $2.00
09 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
10 Torx screw, self-threading M6X13-ZNNIVSI 1 31146786689
11 ISA screw M6X12-8.8-ZNNIV 4 07129905867
12 Return pipe bracket 1 32416791634
13 Bracket, return line 1 32416791635
14 Rubber Mounting H=17 1 32416769256
only in conjunction with
-- Self-locking hex nut M6-8-ZNNIV SI 2 07119905949 $0.24
15 O-ring 11X1,8 HNBR 4 32416788696 $5.00
Notes
  • ENDED = the part has been discontinued (no longer available).
