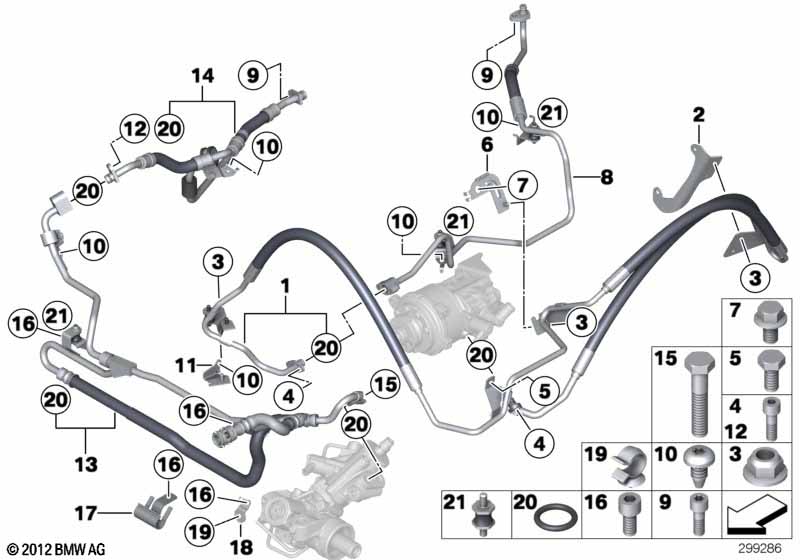

6' F06 Gran Coupé 640iX Power steering/oil pipe/dynamic drive

Power steering/oil pipe/dynamic drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=Yes
01 Expansion hose Dynamic Drive 1st part PART 1 1 32416797649
02 Bracket, expansion hose 1 32416790343
03 Self-locking hex nut M6-8-ZNNIV SI 4 07119905949 $0.24
04 Fillister-head screw M6X18-10.9-ZNS3 4 07119906651
05 Hex bolt M6X12-8.8-ZNS3 2 07119904094 $0.11 ENDED
06 Bracket for exp. hose Dynamic Drive 1 32416797918
07 Hex bolt M12X20 1 07119904488 $3.02
08 Expansion hose Dynamic Drive TEIL 2 1 32416791638 +core
09 ISA screw M8X22-ZNNIV SI 2 07129905769 $0.47
10 Torx screw, self-threading M6X13-ZNNIVSI 5 31146786689
11 Bracket for exp. hose Dynamic Drive 1 32416790019
12 Fillister-head screw M8X25-10.9-ZNS3 1 04/2006 07119905833 ENDED
13 Return pipe Dynamic Drive 1 32416793551
14 Return pipe Dynamic Drive PART 2 1 32416799082
15 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
16 ISA screw M6X12-8.8-ZNNIV 4 03/2009 07129905867
17 Return pipe bracket 1 32416791634
18 Bracket, return line 1 32416791635
19 Tubing support D=17/D=19 1 13537792950 $1.08
20 O-ring 11X1,8 HNBR 4 32416788696 $5.00
21 Rubber Mounting H=17 3 32416769256
only in conjunction with
-- Self-locking hex nut M6-8-ZNNIV SI 3 07119905949 $0.24
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
