6' F06 Gran Coupé 640iX Rear-axle-drive parts

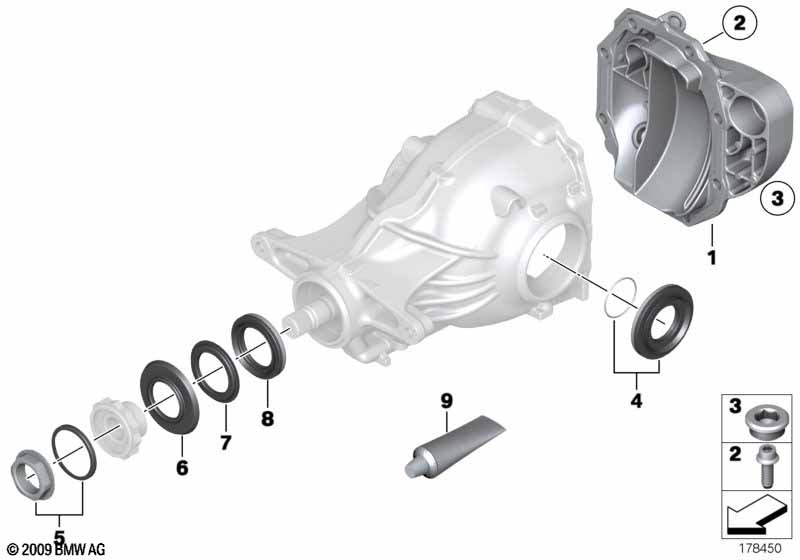

Rear-axle-drive parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, rear 205AL 1 33117573814
02 Flanged cap screw M12X35-10.9ZNS3 8 07/2015 33117584375 ENDED
02 Flanged cap screw M12X35-10.9ZNNI 8 33118650755
03 Screw plug with O-ring M22X1,5-ZNS3 1 33117525064 $3.91
04 Gasket set differential TYP 188 / 205 1 33107564416 $79.70
05 Repair kit insert nut M39X1,5X20 1 33127607158
06 dustcover plate, small 1 33121213903 $1.30
08 Shaft seal 45X75X10 AW 188 1 31507609535
09 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
Notes
  • ENDED = the part has been discontinued (no longer available).
