6' F06 Gran Coupé 640iX Partition trunk/Floor parts

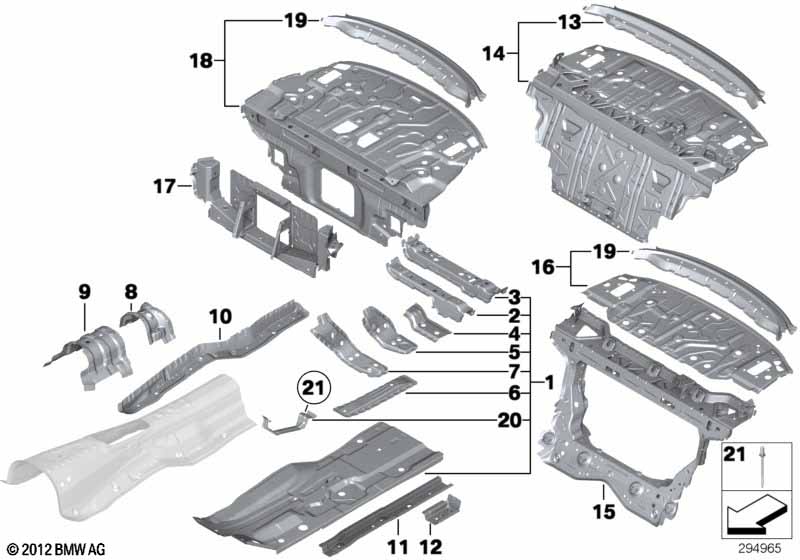

Partition trunk/Floor parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Floor panel right 1 41117259568 ENDED
only in conjunction with
-- Right rear seat console 1 41117263718
-- Right front seat console 1 41117263734
01 Floor panel left 1 41117259567 ENDED
only in conjunction with
-- Corner panel, floorpan 1 41127263711
-- Bracket for accelerator pedal module 1 41117263708
-- Left rear seat console 1 41117263717
-- Left front seat console 1 41117263733
02 Left front seat console 1 41117263733
02 Right front seat console 1 41117263734
03 Left rear seat console 1 41117263717
03 Right rear seat console 1 41117263718
04 Reinforcement, seat bracket, left 1 41117204145
04 Reinforcement, seat bracket, right 1 41117204146
05 Reinforcement, tunnel, rear left 1 41117204147
05 Reinforcement, tunnel, rear right 1 41117204148
06 Engine support reinforcement 2 41117204151
07 Reinforcement, tunnel, front left 1 41117204149
07 Reinforcement, tunnel, front right 1 41117204150
08 Bracket for propel. shaft center bearing 1 41117204164
09 Reinforcement tunnel 1 41127204183
10 Console, transmission support, left 1 41127259581
only in conjunction with
-- Molded section, side member, left 1 41007203899
10 Console, transmission support, right 1 41127259582
only in conjunction with
-- Molded section, side member, right 1 41007203900
11 Extension engine support left 1 41117204181
11 Extension engine support right 1 41117204182
12 Top, engine support extension 2 41127204177
15 Trunk partition for through-loading 1 41117259520
only in conjunction with
-- Strut, body gas pressure spring left 1 41127294905
-- Strut, body gas pressure spring right 1 41127294906
-- Support belt reel, left 1 41129465721
-- Support belt reel, right 1 41129465722
-- Angular reinforcement bracket, left 1 41117294903 NoS
-- Angular reinforcement bracket, right 1 41117294904 NoS
16 Partition, upper trunk 1 41007294970
19 Rear window frame bottom part 1 41117263744
20 Bracket for accelerator pedal module 1 41117263708
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
