6' F06 Gran Coupé 640iX Body-side frame-parts

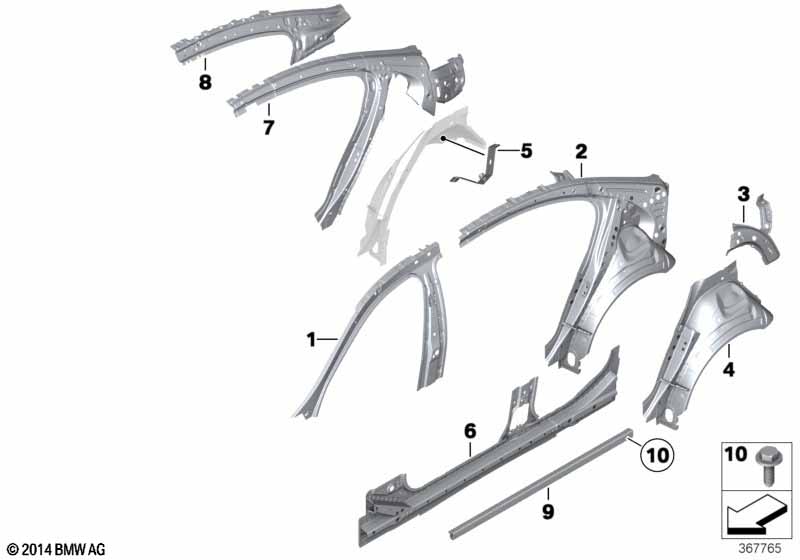

Body-side frame-parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, inside, front left 1 41217294955
01 Side frame, inside, front right 1 41217294956
04 Wheel arch outer rear left 1 41217294971
only in conjunction with
-- Reinforcement plate, left 1 41217294961
04 Wheel arch outer rear right 1 41217294972
only in conjunction with
-- Holder,activat.carbon contain.,front 1 41217294953
-- Reinforcement plate, right 1 41217294962
05 Holder,activat.carbon contain.,front 1 41217294953
06 Side member, inner left 1 41117294669
06 Side member, inner right 1 41117294670
07 Side frame, inside, rear left 1 41217294959
07 Side frame, inside, rear right 1 41217294960
08 C-pillar, inner top left 1 41217294957 NoS
08 C-pillar, inner top right 1 41217294958
09 Reinforcement 2 51717175597
10 Hex bolt with washer M6X18 10 07149182436 $0.56
Notes
  • NoS = No Stock (Part, central, not in stock.)
