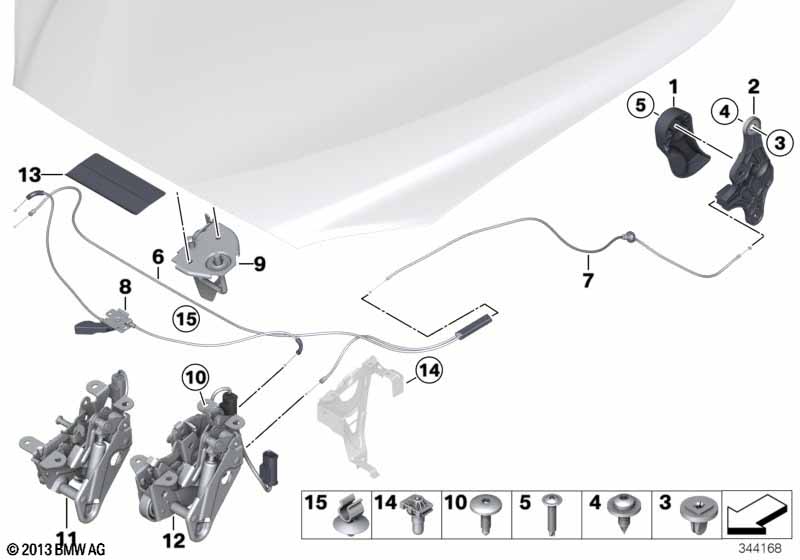

6' F06 Gran Coupé 640iX Hood locking system

Hood locking system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lever f engine hood mechanism 1 51237058117 $2.61
02 Holder 1 51237225648
03 Expanding nut 7X7 MM 3 65138387414 $0.47
04 Sheet metal screw ST4,8X16 3 07119901311 $0.25
05 Phillips screw f plastic material TS5X25-ZNNID-SW 1 07146959925 $0.29
06 Bowden cable, front 1 51237183773 $19.02
07 Bowden cable, rear 1 51237255801
08 Latch control 1 51237183765 $21.37 +core
09 Lock upper section, left 1 51237183763 $44.97 +core
09 Lock upper section, right 1 51237183764 $44.97 +core
10 Oval-head screw with washer ISA M6X21 4 07147263759
11 Lock, hood, passive, right 1 51237183762 $139.43 +core
11 Lock, hood, passive, left 1 51237206453 $139.43 +core
13 Heat protection 165X75MM 1 51237221223 $14.24 ENDED
14 Adjustment element 2 51647200440
15 Hose clamp 3 07147228759
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
