6' F06 Gran Coupé 640iX Rear door - hinge/door brake

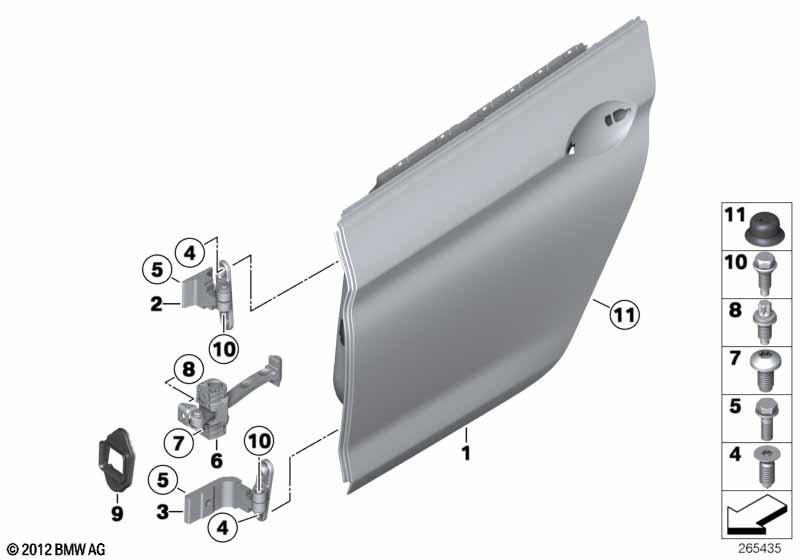

Rear door - hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door rear left 1 41527294993
01 Door rear right 1 41527294994
02 Left upper rear door hinge 1 41527259595
02 Right upper rear door hinge 1 41527259596
03 Left lower rear door hinge 1 41527259597
03 Right lower rear door hinge 1 41527259598
04 Torx-countersunk head screw ISA M8X28 8 07147184164 $0.65
05 Hexagon screw with taper M12X39 4 01/2018 07147184165 $1.55
05 Hexagon screw with taper M12X35 4 07148499258
06 Rear door brake 2 51227275373
07 Oval-head screw with anti-rotation lock ISA M6X12 4 51217061955 $0.69
08 Torx-bolt with washer ASA M8X22 4 07147248303 $0.60
09 Left rear door brake gasket 1 51227275375
09 Right rear door brake gasket 1 51227275376
10 Hexagon screw with flange M8X20 4 51217223086
11 Covering cap 2 07149216250
