6' F06 Gran Coupé 640iX Heat insulation

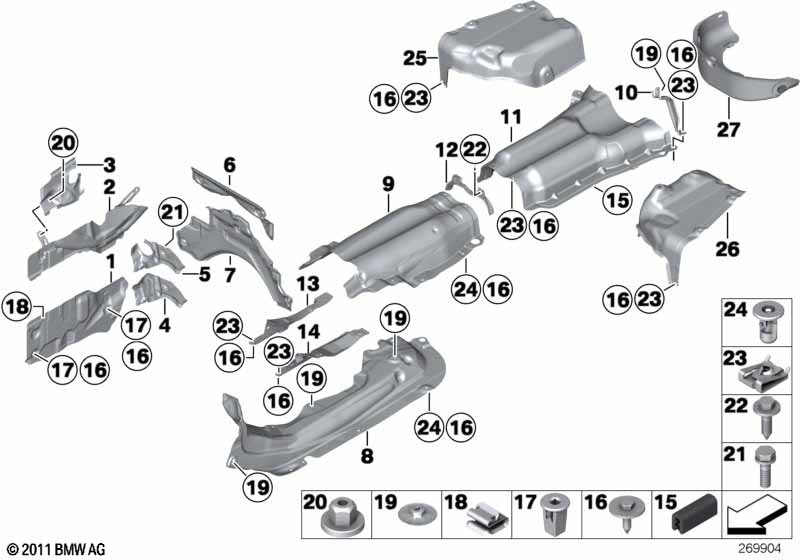

Heat insulation
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heat shield, engine mount, right 1 51487270534
02 Heat insulation, engine mount, top 1 51487270537
04 Heat insulation, front wall 1 51487233901
08 Right front heat insulation 1 51487185202 $89.20
09 Tunnel heat insulator 1 51487202858
10 Bracket, fuel tank heat insulation left 1 51487185209
10 Bracket, fuel tank heat insulation right 1 51487185210
11 Fuel tank heat insulation 1 05/2011 51487227524
13 Heat insulation right 1 51487185204 $17.83
14 Heat insulation, left 1 51487202853
15 Edge protection 1 51728216475
16 Hex bolt TS5X17 SW8 D=22 X 07149126886
17 Expanding nut L=15MM, DMAX=12 X 07146976114 $0.09
18 Cable clamp 3 12527575212 $0.78
19 Body nut D=30MM, ZNS3 X 07146949380 $0.44
20 Plastic capnut with washer D=18MM 1 51161943122 $0.39
21 Hex bolt with washer M6X20-U1-ZNS3 1 07119903849 $1.05 ENDED
21 Hex bolt with washer M6X20 1 07119904527 $0.44
24 Expanding nut L=18.4, DMAX=18 X 07147201307 $0.25
25 Heat insulation, rear silencer, right 1 51487226942 +core
26 Heat insulation, rear silencer, left 1 51487226941
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
