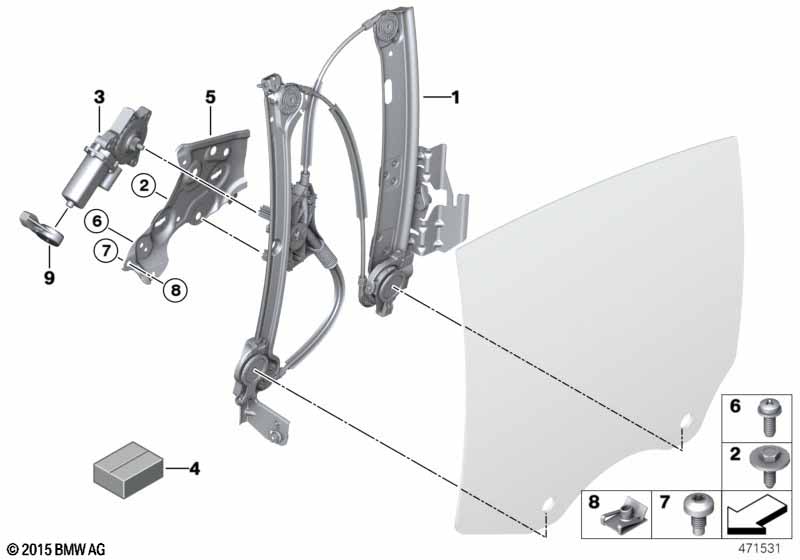

6' F06 Gran Coupé 640iX Door window lifting mechanism rear

Door window lifting mechanism rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Window lifter without motor, rear left 1 51357311597
01 Window lifter without motor, rear right 1 51357311598
02 Hexagon screw for plastic 8 07149110670 $0.71
03 Drive for window lifter, left 1 06/2018 67627304521
03 Drive for window lifter, left 1 67629478201
03 Drive for window lifter, right 1 06/2018 67627304522 ENDED
03 Drive for window lifter, right 1 67629478202
04 Set, mounting hardware, power window 1 51337270735
05 Mounting bracket left 1 51717294327
05 Mounting bracket right 1 51717294328
06 Phillips screw f plastic material TS5X12 2 07129904424 $0.25
07 Torx-bolt with washer ISA M6X12 ZNS3 6 07149258986
08 C-clip nut, self-locking M6-ZNS3 4 07147286036
09 Holder drive power window regulator 2 51357300974
Notes
  • ENDED = the part has been discontinued (no longer available).
