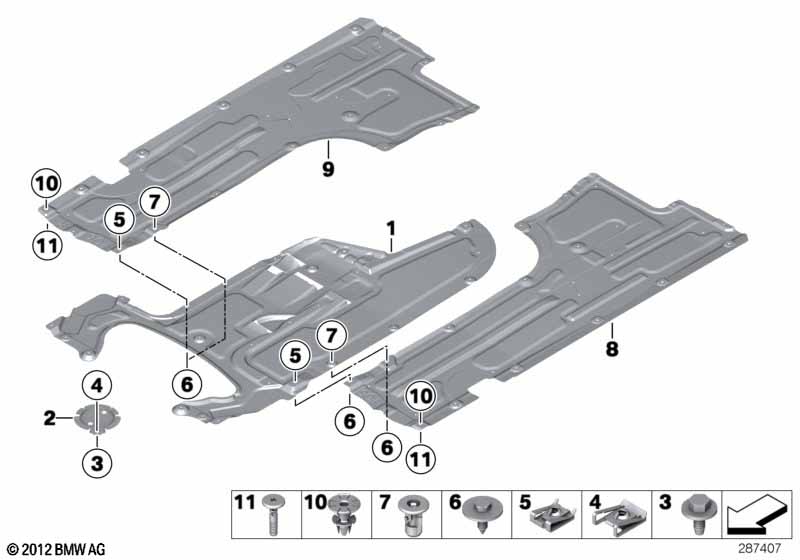

6' F06 Gran Coupé LCI 640iX Underbody cover, front

Underbody cover, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Underfloor coating center 1 51757186714 $94.67
02 Underfloor coating cover 1 51757209541
03 Sheet metal screw ST4,8X13-F-ZNS3 X 07119901291 $0.38
04 C-clip nut, self-locking ST 4.8 -ZNS3 X 07147154447 $0.27
05 C-clip for plastic nut TS5 X 07147311312
06 Hex bolt TS5X20 SW8 D=22 X 07149213164 $0.38
07 Expanding nut L=18.4, DMAX=18 X 07147201307 $0.25
08 Underbody paneling, left 1 51757276181
09 Underside paneling, right 1 51757276182
10 Spacer clip 5 07147122912 $0.48
11 Pin 5 07147122913 $0.23
