6' F12 LCI 640i Retrofit kit, theft alarm

Retrofit kit, theft alarm
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
Notice: The retrofit anti-theft alarm
system
does not include anti-theft protection
(S8TGA).
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=No

S323A=No

S8TFA=Yes

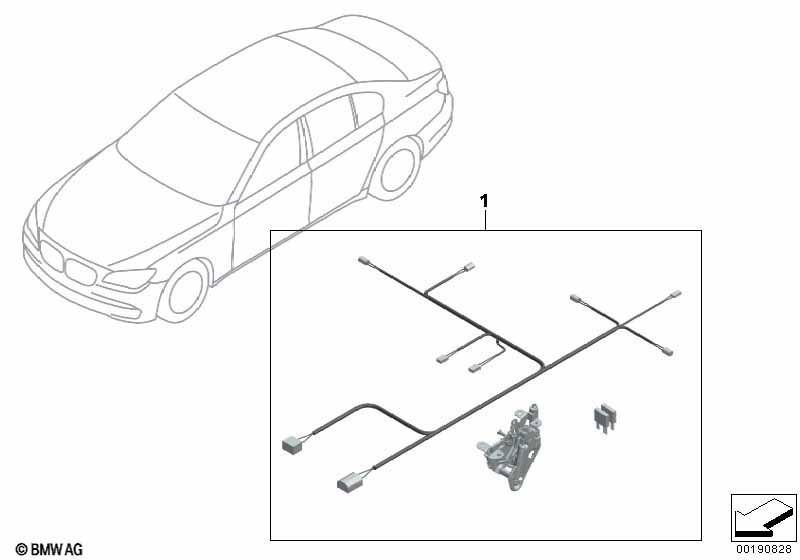

01 Retrofit kit, theft alarm 1 65122221300 +core
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Retrofit wiring harness door lock, alarm 1 61122163192
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Wiring harness, alarm system, door 1 61129235739
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Lock, hood, active, left 1 51237184441 +core
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=Yes

S323A=No

S8TFA=No
01 Retrofit kit, theft alarm 1 65122221300 +core
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
-- Retrofit wiring harness door lock, alarm 1 61122163192
additionally required parts:
Rearview mirror, alarm system
-- Wiring harness, alarm system, door 1 61129235739
additionally required parts:
Rearview mirror, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=Yes

S323A=No

S8TFA=Yes
01 Retrofit kit, theft alarm 1 65122221300 +core
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
-- Retrofit wiring harness door lock, alarm 1 61122163192
additionally required parts:
Rearview mirror, alarm system
-- Wiring harness, alarm system, door 1 61129235739
additionally required parts:
Rearview mirror, alarm system
-- Lock, hood, active, left 1 51237184441 +core
additionally required parts:
Rearview mirror, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=Yes

S323A=Yes

S8TFA=No
01 Retrofit kit, theft alarm 1 65122221300 +core
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=Yes

S323A=Yes

S8TFA=Yes
01 Retrofit kit, theft alarm 1 65122221300 +core
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
-- Lock, hood, active, left 1 51237184441 +core
additionally required parts:
Rearview mirror, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
For vehicles with
Comfort access
and
Soft-Close-Automatic doors
and
Active pedestrian protection

S322A=No

S323A=No

S8TFA=No
01 Retrofit kit, theft alarm 1 65122221300 +core, EBA 2221220
only in conjunction with
-- DWA-Alarm System 4 65759233009
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Altern.power siren w inclination indicat 1 65759268738 ENDED
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Retrofit wiring harness door lock, alarm 1 61122163192
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Wiring harness, alarm system, door 1 61129235739
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
-- Fillister head screw 5X14 4 07149149273 $0.56
additionally required parts:
Rearview mirror, alarm system
Door lock, driver door, alarm system
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
