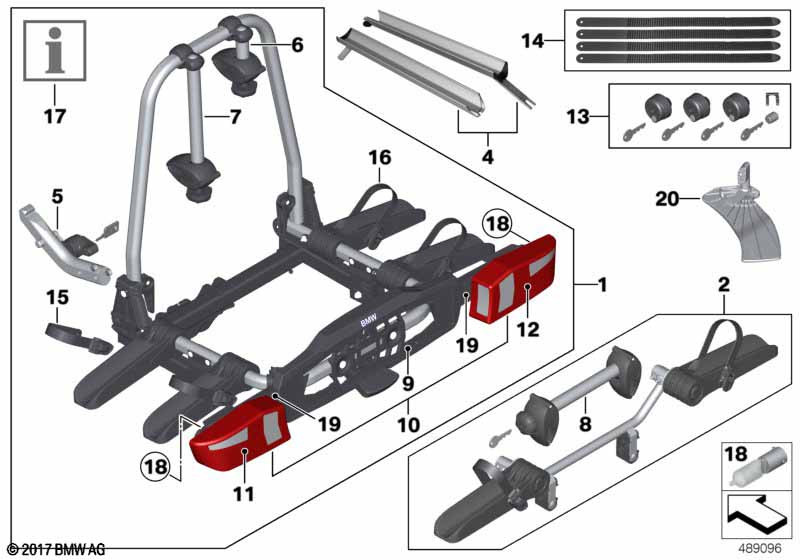

6' F12 LCI 640i Rear bicycle carrier 'Pro'
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear bicycle carrier 'Pro' | RHD | 1 | 82722296746 | |||||
| Only together with retrofit kit for rear transport system (click-on) Retrofit kit, rear transport system on Image Text Unit 2 82_1580 (ECE) or 82_1581 (US) |
|||||||||
| 04 | Ramp for rear carrier | PRO & PRO 2.0 | 1 | 82722295787 | |||||
| not suitable for | |||||||||
| -- | Expansion kit for 3rd bicycle | PRO | X | 82722234059 | |||||
| 05 | Adapter link | CLICK-ON PRO | 1 | 82792361511 | |||||
| 06 | Spacer, short | PRO/PRO2.0/KOMP | 1 | 82722459970 | |||||
| 07 | Spacer, medium | PRO/PRO2.0/KOMP | 1 | 82722459971 | |||||
| 09 | License plate holder | PRO & PRO 2.0 | 1 | 82722299712 | |||||
| 10 | Light kit for RHD | PRO & PRO 2.0 | 1 | 82722295951 | |||||
| 11 | Tail light lens, left | PRO & PRO 2.0 | 1 | 82722299709 | |||||
| 12 | Tail light lens, right | PRO & PRO 2.0 | 1 | 82722299710 | |||||
| 13 | Set uniform locking system | PRO/PRO2.0/KOMP | 1 | 82722459969 | |||||
| Also for replacement of keys | |||||||||
| 14 | Tooth belt | PRO/PRO2.0/KOMP | 1 | 82722459968 | |||||
| 15 | Ratchet mechanism & toothed belt, left | PRO & PRO 2.0 | 2 | 82722299707 | |||||
| 16 | Ratchet mechanism & toothed belt, right | PRO & PRO 2.0 | 2 | 82722299708 | |||||
| 17 | Mounting information | 1 | 01292234083 | ||||||
| 18 | Turn signal bulb | PRO & PRO 2.0 | 2 | 82722338490 | |||||
| 19 | Hinge for tail light | PRO / PRO 2.0 | 2 | 82792433206 | |||||
