6' F12 LCI 640i Activated Charcoal Filter/FUEL VENTILAT

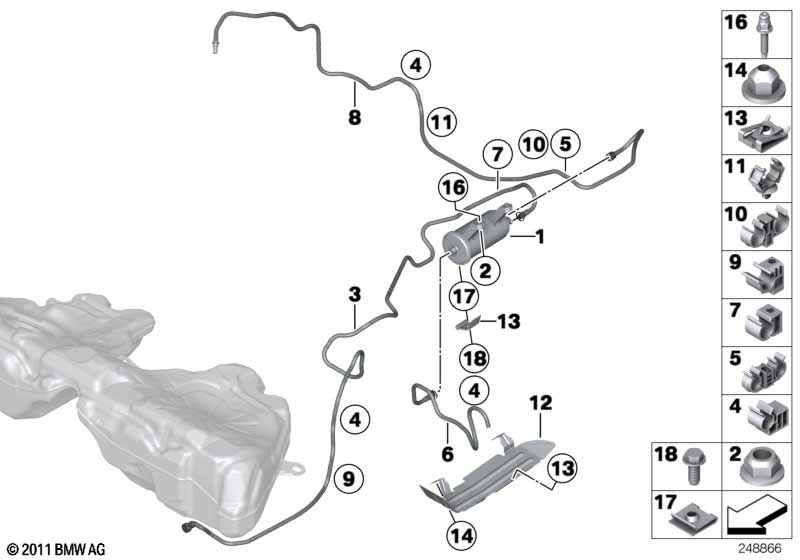

Activated Charcoal Filter/FUEL VENTILAT
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Activated Charcoal Filter 1 16137223207
03 Scavenging line rear 1 16137210804
04 Pipe clip D14 8 16126766397 $1.05
05 Tubing support 1 34336760714 $1.05
06 Vent pipe 1 16137230400
07 Pipe clip D=12MM 1 16126762696 $1.05
08 Vent pipe 1 16137210812
09 Pipe clip D=12MM 3 16136760583 $1.05
10 Clip D12-D18 1 16117164411 $1.62
12 Stone-chip guard 1 16117230176
13 C-clip nut 2 51717065773
14 Cap nut M5 2 05/2015 51711934930 $0.23
14 Plastic nut 2 07147336362
15 Clamp bracket 1 16137265834
16 Rivet pin M6X26,7 2 07147266043
17 Body nut ST6,3-2-ZNS3 1 07129904232 $0.16
18 Hex head screw ST6,3X13-F-Z1 1 07119905807 $0.56
