6' F12 LCI 640i Engine Suspension

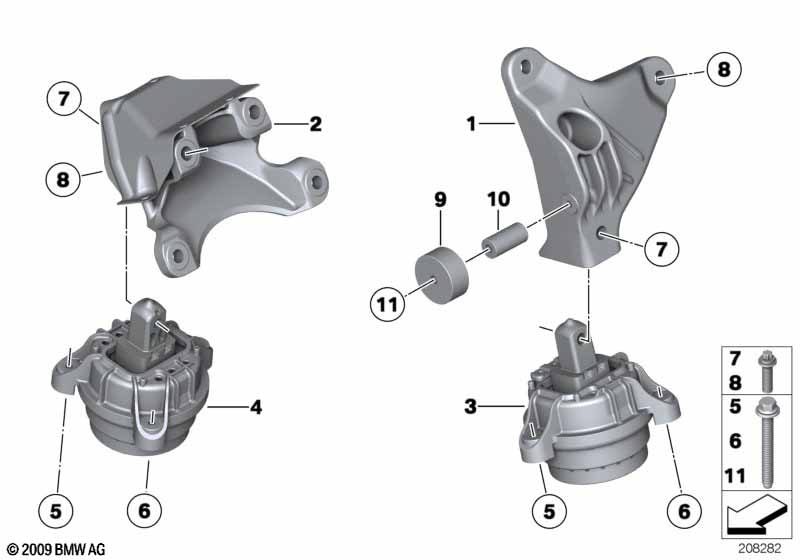

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116777605 +core
02 Engine supporting bracket, right 1 22116781226
03 Engine mount, left 1 22116777365
04 Engine mount, right 1 22116786528
Required for repair
-- Hex bolt with washer M8X130 ZNNIV SI 1 07119905893
-- Hex bolt with washer M8X90 ZNNIV SI 1 07119907017
05 Hex bolt with washer M8X130 ZNNIV SI 2 07119905893
06 Hex bolt with washer M8X90 ZNNIV SI 4 07119907017
07 Star-socket screw BM12X1,5X40-U1- 2 07119908507
08 ASA-Bolt M12X42 7 22116778231 $1.75
09 Additional weight 1 10/2015 22116788421 ENDED
09 Additional weight 1 22326872625
10 Bush 1 22116795240
11 Hex bolt M8X60-U1-ZNS3 1 07119907260
only applies to
-- Bush X 22116795240
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
