6' F12 LCI 640i Drive shaft-cent.bearing-universal joint

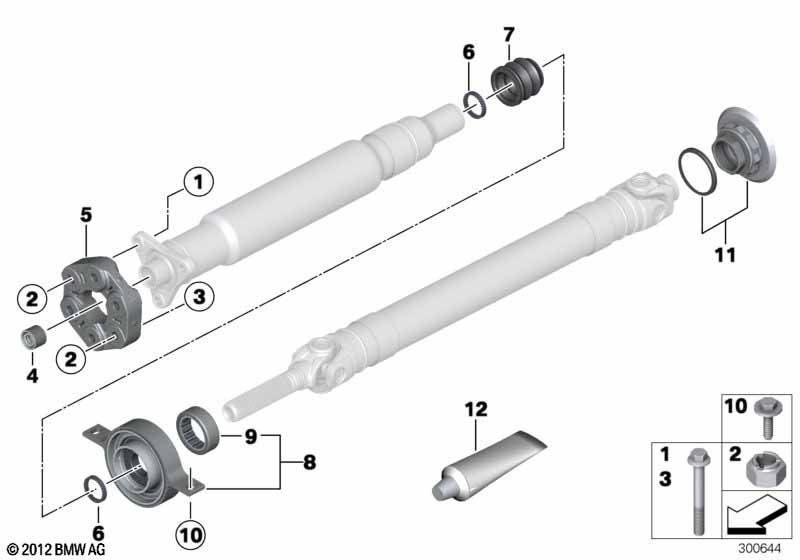

Drive shaft-cent.bearing-universal joint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Bolt on Hardy coupling
01 Hex bolt M12X1,5X71-ZNS3 3 26117527475 $2.08
02 Self-locking hex nut M12X1,5-10-ZNS3 6 26127536563 $1.00
Bolt on transmission
03 Hex bolt M12X1,5X71-ZNS3 3 26117527475 $2.08
04 Centering sleeve 1 26117526611 $11.32
05 Universal joint LK=105MM/12 1 12/2015 26117605629 ENDED
05 Universal joint LK=105MM/12 1 26117610061
05 Universal joint LK=105MM/12 1 12/2015 26117605629 ENDED
05 Universal joint LK=105MM/12 1 26117610061
06 Damper ring D=38/D=33 2 26117581110
07 Rubber boot, center bearing 1 26117526628 $8.45
08 Center Mount, aluminium 1 26127564695 +core
09 Grooved ball bearing D=55/D=35 1 26121225002 $30.45
10 Hex bolt with washer M8X22-8.8-ZNS3 2 22326760945 $1.08
Important!
Note Repair Manual
11 Repair kit insert nut M39X1,5X20 1 33127607158
12 Grease Optitemp HT 1 LF 50G X 83230417754
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
