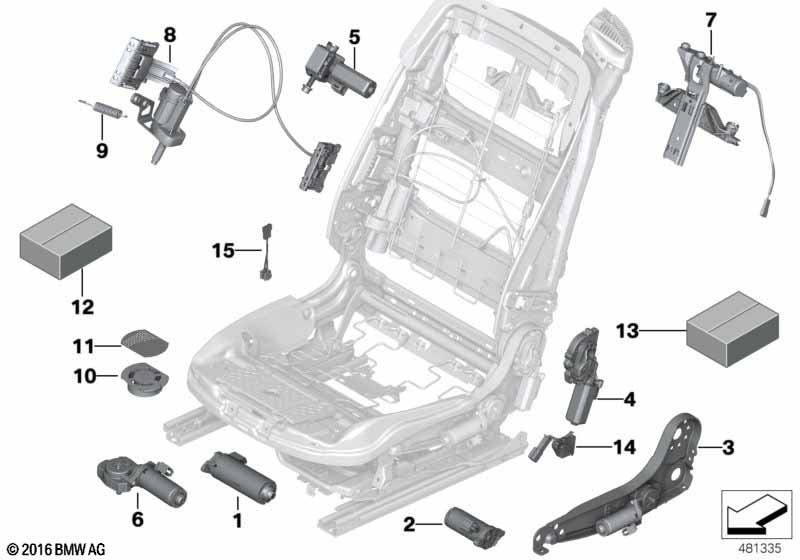

6' F12 LCI 640i Seat, front, electrical and motors
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive, longitudinal seat adjustment left | 1 | 52107309647 | ||||||
| only in conjunction with | |||||||||
| 01 | Drive, longitudinal seat adjustment rght | 1 | 52107321956 | ||||||
| only in conjunction with | |||||||||
| -- | set of fittings for seat drive | 1 | 52107309648 | ||||||
| 02 | Drive, seat angle adjustment left | 1 | 52107309659 | ||||||
| 02 | Drive, seat angle adjustment right | 1 | 52107309660 | ||||||
| 03 | Drive, seat height adjustment left | 1 | 52107309657 | ||||||
| 03 | Drive, seat height adjustment right | 1 | 52107309658 | ||||||
| 04 | Drive unit, backrest angle adjust., left | 1 | 52107309653 | ||||||
| 04 | Drive unit, backrest angle adjst., right | 1 | 52107309654 | ||||||
| 05 | Drive, backrest head adjustment, left | 1 | 52107309649 | ||||||
| 05 | Drive, backrest head adjustment, right | 1 | 52107309650 | NoS | |||||
| 06 | Drive for thigh bolster pad, left | 1 | 52107309655 | ||||||
| 06 | Drive for thigh bolster pad, right | 1 | 52107309656 | ||||||
| 07 | Drive,vertical headrest adjustm., memory | 2 | 52109155767 | $219.99 | |||||
| 08 | Drive, backrest width adjustment, left | 1 | 52107309651 | ||||||
| 08 | Drive, backrest width adjustment, right | 1 | 52107309652 | ||||||
| 09 | Set, springs, backrest width adjustment | 2 | 52107242079 | ||||||
| 10 | Fan | 8 | 52107056235 | $50.52 | +core | ||||
| 11 | Ventilation grill | D=59MM | 4 | 52107306691 | |||||
| 11 | Grid, backrest | 8 | 52207062867 | $8.52 | |||||
| 12 | set of fittings for seat drive | 2 | 52107309648 | ||||||
| 13 | Mounting kit, head-restraint adjuster | 2 | 52109162883 | ||||||
| 14 | Micro switch left | 1 | 52107357163 | ||||||
| 14 | Micro switch right | 1 | 52107357164 | ||||||
| 15 | Adapter cable for active seat | 2 | 52107440801 | ||||||
Notes
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
