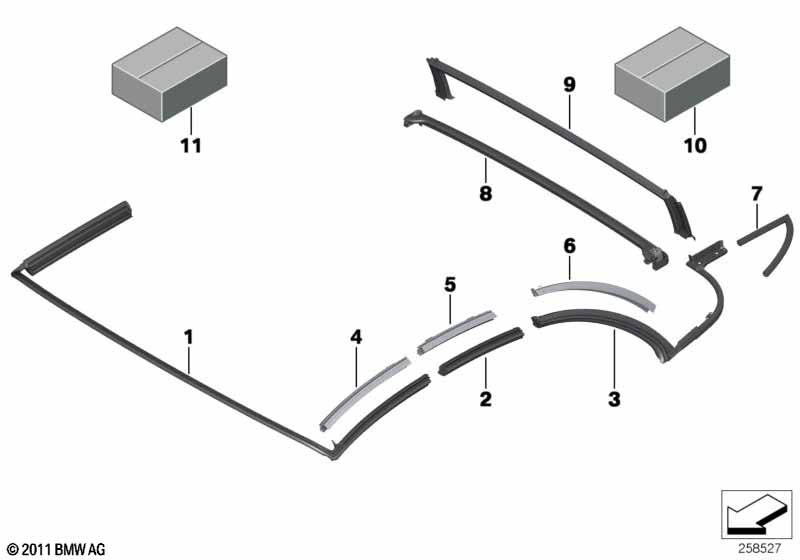

6' F12 LCI 640i Convertible top seals
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cowl gasket | 1 | 54347226968 | ||||||
| 02 | Left roof frame gasket | 1 | 54347248371 | ||||||
| 02 | Right roof frame gasket | 1 | 54347248372 | ||||||
| 03 | Gasket rear left | 1 | 01/2011 | 54347248373 | ENDED, NoS | ||||
| 03 | Gasket rear left | 1 | 54347322309 | ||||||
| 03 | Gasket rear right | 1 | 01/2011 | 54347248374 | ENDED, NoS | ||||
| 03 | Gasket rear right | 1 | 54347322310 | ||||||
| 04 | Support rail, front left | 1 | 54347310619 | ||||||
| 04 | Support rail, front right | 1 | 54347310620 | ||||||
| 05 | Support rail, center left | 1 | 54347310621 | ||||||
| 05 | Support rail, center right | 1 | 54347310622 | ||||||
| 06 | Rail f gasket rear left | 1 | 54347248375 | ||||||
| 06 | Rail f gasket rear right | 1 | 54347248376 | ||||||
| 07 | Seal for fin, left | 1 | 54347248367 | ||||||
| 07 | Seal for fin, right | 1 | 54347248368 | ||||||
| 08 | Seal for duct cover | 1 | 54347226957 | ||||||
| 09 | Seal for rear window | 1 | 54347226958 | +core | |||||
| 10 | Mounting kit for frame rail | 1 | 54347310386 | ||||||
| 11 | Fastening kit, gaskets | 1 | 54347315107 |
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
