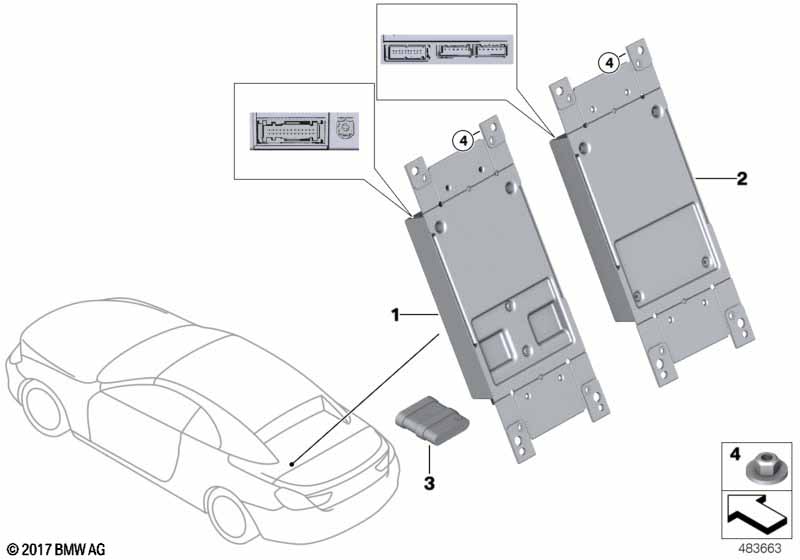

6' F12 LCI 640i Telematics control unit

Telematics control unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Order and installation of an encoded
telematics control unit will deactivate
the currently installed SIM map.
ConnectedDrive and Teleservice services
can then only be implemented with the
new control unit.
The ordered control unit does not
operate in any other vehicle,
only this one!
For vehicles with
National version China
and
Country control for Brazil 00464
and
Country control for HongKong 04142
and
Country-specific equipment Russia 10323
and
Providersteuerung Telematik










L8AAA=No

S8LBA=No

S8LHA=No

S8LRA=No

S8SXA=No
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices

S602A=No

S609A=No

S6AEA=Yes
01 Telematics control unit TCB ECE 1 03/2016 84109322954 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
01 Telematics control unit TCB ECE 1 03/2016 84109350661 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
01 Telematics control unit TCB ECE GPS 1 03/2016 84109362848
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=No

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=No

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=No

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=No

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=No

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=No

S6AFA=Yes

S6WDA=Yes
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2016 84106822825 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 03/2016 07/2019 84106836768
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G WLAN 1 07/2019 84105A0FC28
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=Yes

S6AFA=No

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=Yes

S609A=No

S6AEA=No

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=Yes

S6AFA=No

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=Yes

S6NWA=No

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
For vehicles with
On-board monitor with TV
and
Navigation system Professional
and
Teleservices
and
Statutory emergency request
and
Convenience phone, expanded Smartphone
and
Phoning with wireless charging
and
WLAN Hotspot

S602A=No

S609A=Yes

S6AEA=No

S6AFA=Yes

S6NSA=No

S6NWA=Yes

S6WDA=No
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2016 84109380156 ENDED
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 03/2016 07/2019 84106836764
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
02 Telematics control unit ATM ECE 4G 1 07/2019 84105A0FC22
Important notice! The battery is not
included in the telematics
communications box and must be ordered
separately as required!
04 Battery ATM 1 03/2016 84102447710
For vehicles with
On-board monitor with TV
and
Navigation system Professional

S602A=No

S609A=No
04 Battery 4,8V 440MAH 1 03/2016 84109297787
05 Hex nut M5 1 03/2016 07129906048 $0.73
Notes
  • ENDED = the part has been discontinued (no longer available).

Copyright © RealOEM.com
