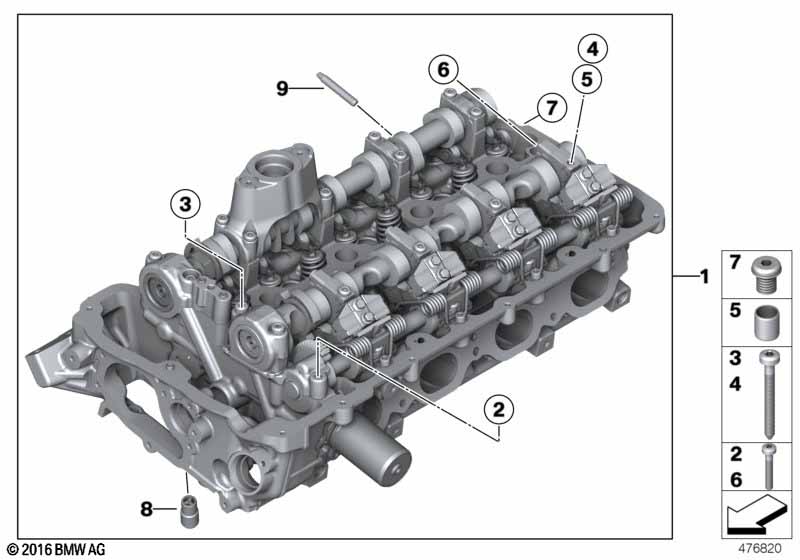

6' F12 LCI 650iX Cylinder Head

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head w. intake valvetrain ZYL. 1-4 1 06/2016 11121559901 ENDED
01 Cylinder head with valve gear ZYL. 1-4 1 11122118167
01 Cylinder head w. intake valvetrain ZYL. 5-8 1 06/2016 11121559902 ENDED
01 Cylinder head with valve gear ZYL. 5-8 1 11122118168
02 ISA screw M6X40-8.8 30 11127603406
03 Fit bolt M6X75 4 11127603917
04 ISA screw M6X67-8.8 8 11127603407
05 Dowel D=7,5MM 36 11127606504
06 ISA screw M6X40-8.8 8 11127603406
07 Screw Plug With Gasket Ring M10X1 1 11127540072 $2.60
08 non-return valve M14X1,5 1 11127568840 $16.11
09 Stud bolt M8X50-10.9 8 11127586763 $0.93
09 Stud bolt self-locking M8X50-10.9 8 11128680222
Notes
  • ENDED = the part has been discontinued (no longer available).
