6' F12 LCI 640d Noise insulation, front I
Sponsored links
Sponsored links

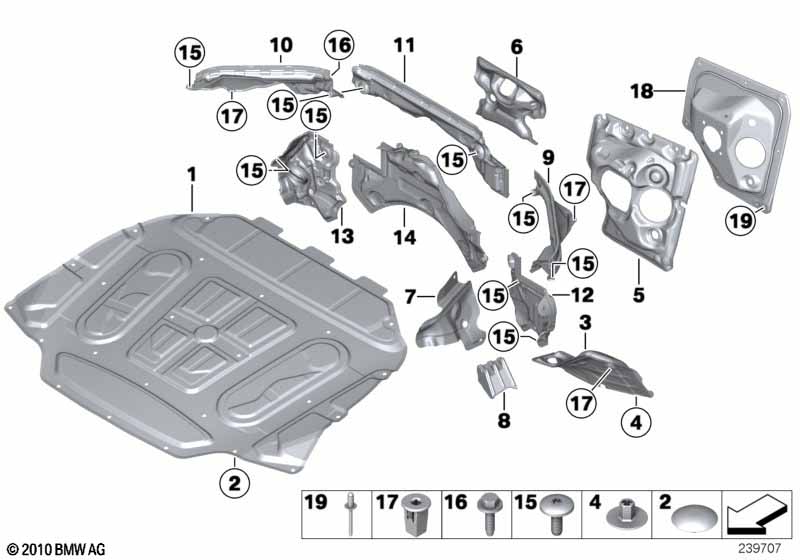

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | On vehicles with four-wheel drive, the sound insulation on bulkhead lower section left BN12, cannot be replaced separately. Use the steering shaft, bottom. |
||||||||
| 01 | Sound insulating engine hood | 1 | 51489166115 | +core | |||||
| 02 | Clip | 23 | 51489119216 | $0.37 | |||||
| 03 | Noise insulation, wheelhousing, left | 1 | 51487234327 | ||||||
| 03 | Noise insulation, wheelhousing, right | 1 | 51487234328 | ||||||
| 04 | Clip nut | 5X15 D=30 SW10 | X | 07147139081 | $0.20 | ||||
| 05 | Sound insulat.dash panel engine room R. | 1 | 51489139216 | ||||||
| 06 | Sound insulat.dash panel engine room ce. | 1 | 51489139205 | ||||||
| 07 | Sound insul.,eng.-comp. part. wall,left | 1 | 51489110177 | ||||||
| 07 | Sound insul.,eng.-comp. part.wall,right | 1 | 51489110178 | ||||||
| 08 | Seal, wheelhousing, left | 1 | 51487239241 | ||||||
| 08 | Seal, wheelhousing, right | 1 | 51487239242 | +core | |||||
| 09 | Firewall, upper section, left | 1 | 51717211464 | ||||||
| 10 | Firewall, upper section, right | 1 | 51717204336 | ||||||
| 11 | Firewall, upper section, center | 1 | 51717204334 | ||||||
| 12 | Noise insulation, firewall, lower left | 1 | 51717211899 | ||||||
| 13 | Noise insulation, firewall, lower right | 1 | 51717211900 | ||||||
| 14 | Sound insulat., bottom sect. of bulkhead | 1 | 51717188421 | ||||||
| 15 | Oval-head machine screw, self-locking | M6X18MM ISA | X | 07149188001 | |||||
| 16 | Hex bolt | TS5X20 SW8 D=16 | 4 | 07147148437 | $0.44 | ||||
| 17 | Expanding nut | L=15MM, DMAX=12 | 3 | 07146976114 | $0.09 | ||||
| 18 | Cover plate, firewall | 1 | 51717184113 | ||||||
| 19 | Blind rivet | 7 | 07149191219 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
