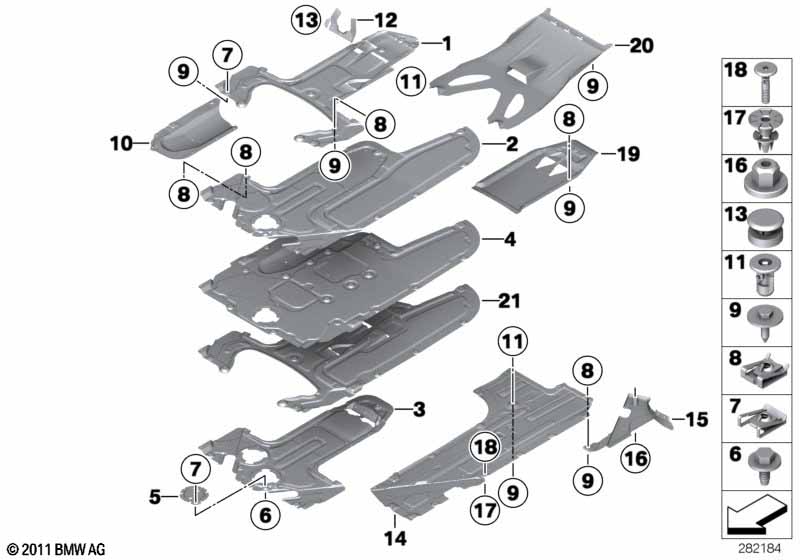

6' F12 LCI 640d Underfloor coating

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
05	Underfloor coating cover		1			51757209541
06	Sheet metal screw	ST4,8X13-F-ZNS3	X			07119901291	$0.38
07	C-clip nut, self-locking	ST 4.8 -ZNS3	X			07147154447	$0.27
08	C-clip for plastic nut	TS5	X	12/2011		07147311312
09	Hex bolt	TS5X20 SW8 D=22	X			07149213164	$0.38
11	Expanding nut	L=18.4, DMAX=18	X			07147201307	$0.25
14	Underbody paneling, left		1			51757224461
14	Underside paneling, right		1			51757224462
15	Covering tank, left		1			51757224467
15	Covering tank, right		1			51757224468
16	Plastic capnut with washer	D=18MM	X			51161943122	$0.39
