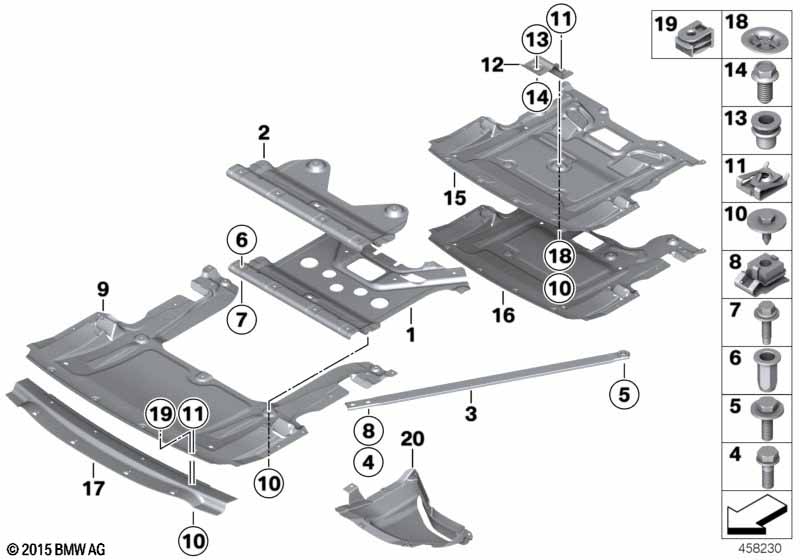

6' F12 LCI 640d Underhood shield
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Structural reinforcement panel | 1 | 51717197500 | ||||||
| 03 | Torsion link | 2 | 51717197539 | ||||||
| 04 | Combination Allen bolt | M10X35 | 4 | 01/2011 | 07147284584 | ||||
| 05 | Hex bolt | M12X45 | 2 | 01/2011 | 07147284229 | ||||
| 06 | Blind rivet nut, flat headed | M8 DMAX=20MM | 4 | 01/2011 | 07147284477 | ||||
| 07 | Screw self-tapping | M8X33-10.9 ZNS3 | 4 | 31106783907 | $0.98 | ||||
| 08 | Plug-in nut | M10-10 ZNS3 | 4 | 01/2011 | 07147283812 | ||||
| 09 | Engine encapsulation, front | 1 | 51757211031 | ||||||
| 10 | Hex bolt | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | ||||
| 10 | Hex bolt | TS5X17 SW8 D=22 | X | 07149126886 | |||||
| 11 | C-clip nut | X | 51717065773 | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 17 | Interm. piece engine compartment shield. | 1 | 02/2012 | 51758056414 | |||||
| 18 | Attachment | ALPINA | 1 | 51757980139 | |||||
| 19 | C-clip for plastic nut | TS5 | X | 07147311312 | |||||
