6' F12 LCI 640d Glove box
Sponsored links
Sponsored links

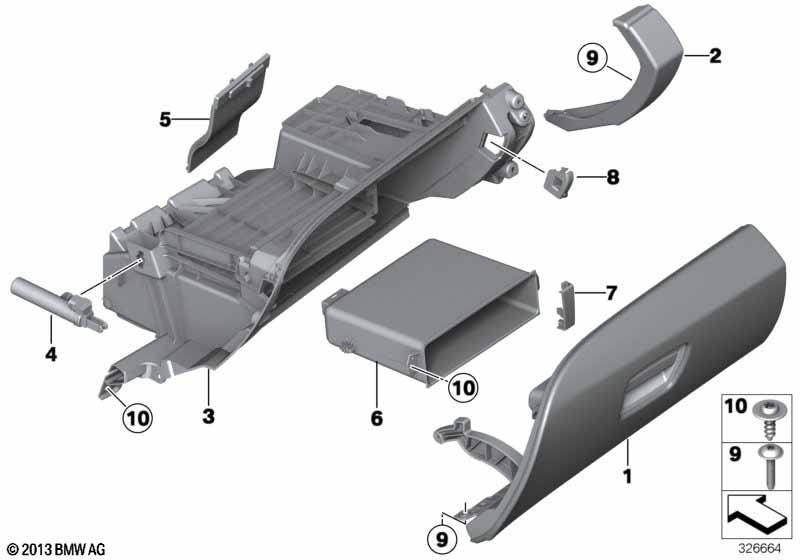

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with cognac/schwarz |
RQ=Yes |
||||||||
| 01 | Glove box lid | COGNAC | 1 | 51169350659 | |||||
| For vehicles with zimt-braun |
EZ=Yes |
||||||||
| 01 | Glove box lid | ZIMTBRAUN | 1 | 51169240817 | |||||
| For vehicles with vermilion-rot |
BY=Yes |
||||||||
| 01 | Glove box lid | VERMILIONROT | 1 | 51169240815 | |||||
| For vehicles with elfenbein-weiss/schwarz or elfenbein-weiss |
EP=Yes EX=Yes |
||||||||
| 01 | Glove box lid | ELFENBEINWEISS | 1 | 51169240816 | |||||
| For vehicles with anthracite or Black |
AT=Yes SW=Yes |
||||||||
| 01 | Glove box lid | SCHWARZ | 1 | 51169240818 | |||||
| For vehicles with cognac/schwarz |
RQ=Yes |
||||||||
| 02 | End cover | COGNAC | 1 | 51169350657 | |||||
| For vehicles with zimt-braun |
EZ=Yes |
||||||||
| 02 | End cover | ZIMTBRAUN | 1 | 51169240809 | |||||
| For vehicles with vermilion-rot |
BY=Yes |
||||||||
| 02 | End cover | VERMILIONROT | 1 | 51169240807 | |||||
| For vehicles with elfenbein-weiss/schwarz or elfenbein-weiss |
EP=Yes EX=Yes |
||||||||
| 02 | End cover | ELFENBEINWEISS | 1 | 51169240808 | |||||
| For vehicles with anthracite or Black |
AT=Yes SW=Yes |
||||||||
| 02 | End cover | SCHWARZ | 1 | 51169240810 | |||||
| 03 | Glove box housing | 1 | 51169228263 | ||||||
| only in conjunction with | |||||||||
| -- | Fillister head screw | 4X12MM | 1 | 07147122390 | $0.25 | ||||
| 04 | Glove box damper | 1 | 51169142637 | +core | |||||
| 05 | Cover, fuse carrier | 1 | 51169198595 | ||||||
| 06 | Oddments tray | 1 | 51459223744 | ||||||
| 07 | Covering cap right | 1 | 51169228795 | ||||||
| 07 | Covering cap left | 1 | 51169228796 | ||||||
| 08 | Detent bushing, right | 1 | 51169228793 | ||||||
| 08 | Detent bushing, left | 1 | 51169228794 | ||||||
| 09 | Oval-head screw with washer | DELTA PT4X20 | 8 | 07149185673 | |||||
| 10 | Oval-head screw with washer | DELTA PT4X12 | 10 | 07149200941 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
