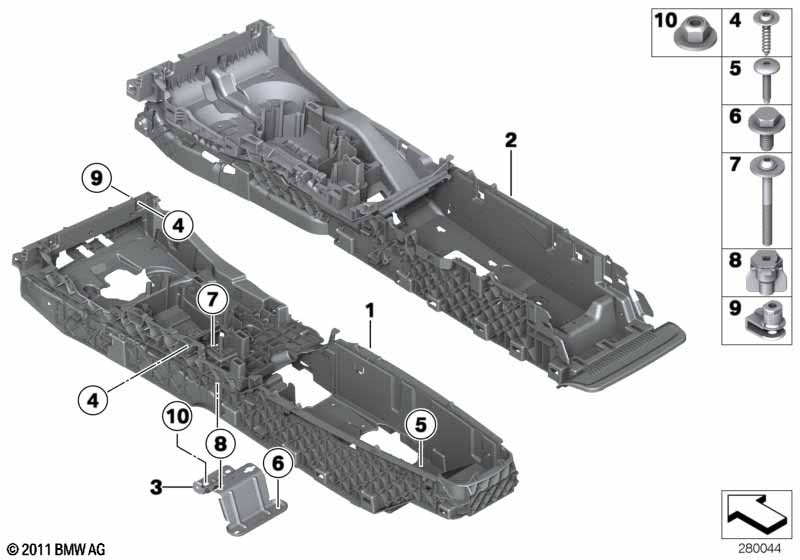

6' F12 LCI 640d Mount, center console

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Mount, center console		1			51169197325			NoS
03	Bracket, center console		1			51169197300			NoS
04	Oval-head screw with washer	DELTA PT4X20	X			07149185673
05	Fillister head screw	6X27	4			07149186999
06	Hex bolt with washer	M6X12.4MM ZNS3	2			07146954299	$0.64
07	Fillister head screw		2			07147133547
08	Adjustment element		2			07149232402
09	C-clip for plastic nut		X			07149200938
10	Self-locking hex nut	M6	2			64509123157	$0.70

Notes

• NoS = No Stock (Part, central, not in stock.)
