| No. |
Description |
Supp. |
Qty |
From |
Up To |
Part Number |
Price |
|
Notes |

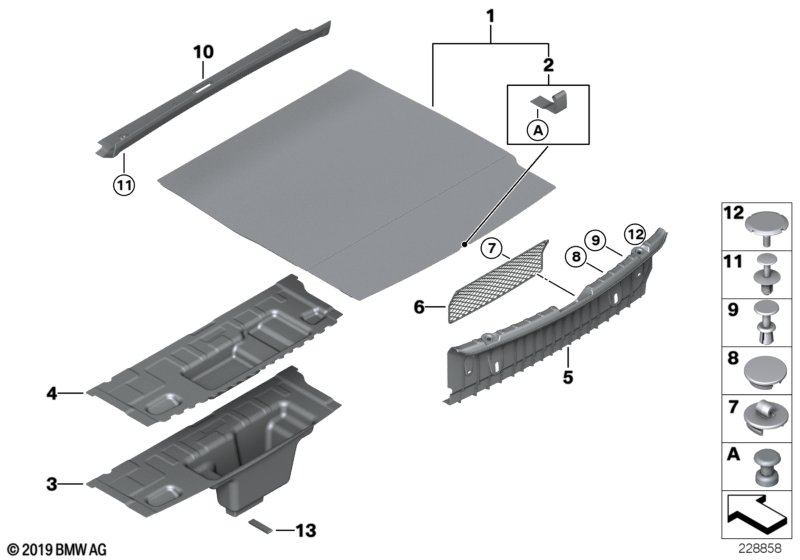

| 01 |
Floor carpet, luggage compartment |
|
1 |
|
|
51477224799 |
|
|
|
| 02 |
Repair kit for leather strap |
|
1 |
|
|
51477295784 |
|
|
+core |
|
For vehicles with
Integral active steering |
S2VHA=No |
|
| 03 |
Luggage comp.indentation trim panel |
|
1 |
|
|
51477226446 |
|
|
|
|
For vehicles with
Integral active steering |
S2VHA=Yes |
|
| 04 |
Pad floor carpet, luggage compartment |
|
1 |
|
|
51477225341 |
|
|
|
| 05 |
Loading sill cover |
|
1 |
|
|
51477231986 |
|
|
|
| 06 |
Trunk room net |
|
1 |
|
|
51477304507 |
|
|
|
| 07 |
Clip for luggage compartment net |
|
4 |
|
|
51477304498 |
|
|
|
| 08 |
Cover lid |
SCHWARZ |
3 |
|
|
51477018913 |
$0.90 |
|
|
| 09 |
Expanding rivet |
SCHWARZ |
4 |
|
|
51498166702 |
$0.37 |
|
|
| 10 |
Lower rear window frame trim panel |
|
1 |
|
|
51477224967 |
|
|
|
| 11 |
Expanding rivet |
D = 8MM |
4 |
|
|
51471911992 |
$0.40 |
|
|
| 12 |
Stop plate |
|
2 |
|
|
51247217155 |
$9.68 |
|
|
| 13 |
Rubber band |
|
1 |
|
|
51477304508 |
|
|
|
