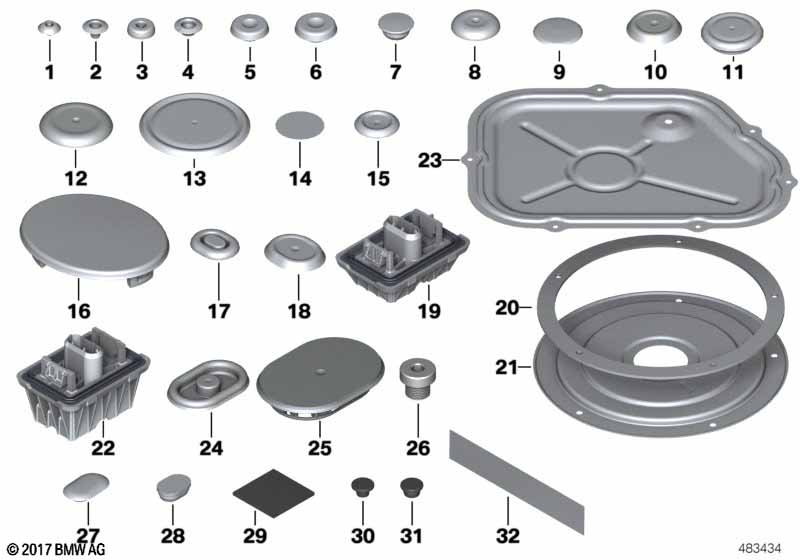

6' F12 LCI 640d Sealing cap/plug

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
i	D = hole-circle diameter in the body
01	Blind plug	D=6,5MM	X			07147221349
03	Blind plug	D=9.0MM	X			07147133560	$0.38
04	Blind plug	D=11MM	X			51718235734	$0.32
05	Blind plug	D=12MM	X			07147127539	$0.26
06	Blind plug	D=15MM	X			07147127540	$0.26
07	Blind plug	D=16MM	X			51718257286	$0.40
08	Blind plug	D=20MM	X			07147140850	$0.19
09	Blind plug	D=22MM	X			51711855009	$0.50
10	Blind plug	D=25MM	X			51717175886	$0.63
11	Blind plug	D=30MM	X			51718168260	$0.50
12	Blind plug	D=35MM	X			07147140849	$0.73
13	Blind plug	D=54MM	X			61138353500	$1.12
14	Sealing film	PUR, D=30MM	1			51711922189	$0.82
15	Sealing plug	D=20	4			07147222097	$1.12
16	Cover, steering column		1			51719151866
17	Blind plug	18X24MM	2			51710588794	$0.85
18	Blind plug	25X30MM	X			07149193300	$0.59
19	Support lifting platform		4			51717169981	$13.42
20	seal, cap		1			51717176319
21	cover, floor panel rear		1			51717176320
24	Blind plug	D=25X45MM	X			51718226005	$0.79
26	Screw plug	M16X1,5	1			07119902292	$2.83
29	sealing	25X25MM	2			51718163653	$0.32
30	Blind plug	D=8MM	4			61139217728
31	Blind plug	D=10MM	4			61139217729
32	Protective foil vehicle identif.number		1			07147220652
