2' F46 Gran Tourer LCI 216d Oil pan/oil level indicator

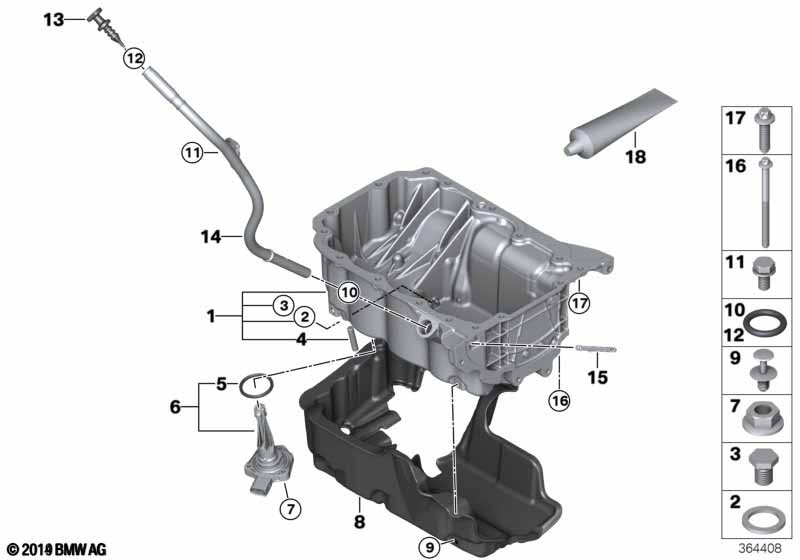

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137605231
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Gasket ring A12X16-CU 1 07119963132 $0.38
03 Screw plug M12X16 1 11137535106 $3.68
04 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
05 Gasket 1 12617604790
06 Oil levelling sensor 1 12617638342
07 Hex nut M6-8-ZNNIV SI 1 07119905544 $0.64
08 Cover, acoustic 1 11148514326
09 Expanding rivet D = 8MM 1 51471911992 $0.40
10 O-ring 14X3 1 11437794698 $1.19
11 Hex bolt with washer M8X16 1 07119905528 $0.62
12 O-ring 9X2,2 1 11431717666 $0.73
13 Dipstick 1 11438512502
14 Guide tube 1 11438511392
15 Blind plug 1 11117536143 $0.67
16 Torx bolt M8X110 2 11137800625
17 ASA-Bolt M8X30 14 11138592611
18 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
