2.5CS-3.0CSL 3.0CSiL Fuel pump/fuel filter

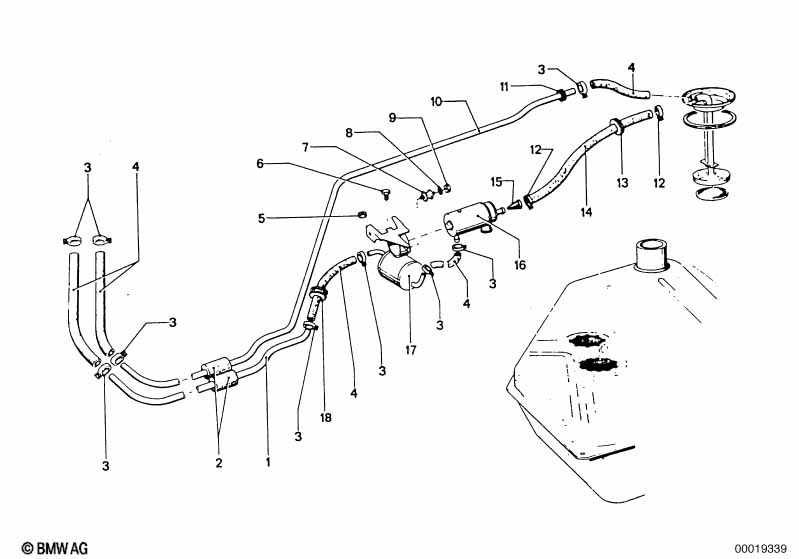

Fuel pump/fuel filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Return pipe 1 16121111538 $29.71
02 Rubber grommet 19 16124584137 $2.26
04 Fuel hose 8X13MM X 16121180409 $20.43
05 Self-locking hex nut M6 1 07129922705 $0.27
06 Hex bolt M6X20-8.8-ZNS 1 07119913016 $0.60
07 Rubber Mounting 3 16121177891 $10.82
09 Hex nut M6-8-ZNS 6 07119922832 $0.37 ENDED
09 Hex nut M6-8-ZNNIV SI 6 07119905543 $0.38
10 Fuel pipe 1 10/1973 11/1975 16121113488 ENDED
11 Grommet 1 16124780109 $1.51
12 Hose clamp L15-19 2 07129952107 $0.93
13 Rubber grommet 2 16121107262 $3.39
14 Fuel hose 12X18 X 16121176440 $15.25
15 Filter cartridge 1 16121110497 ENDED
16 Fuel pump 1 16121107414 $924.45 ENDED
16 Fuel pump 1 16121115862 $231.01 ENDED
16 Fuel pump 1 16141178751 $387.81
17 Bracket with expansion unit 1 16121111541 $136.33
18 Rubber grommet 1 16121105846 $10.57
Notes
  • ENDED = the part has been discontinued (no longer available).
