3' F30 LCI 320i Activated Charcoal Filter/FUEL VENTILAT
Sponsored links
Sponsored links

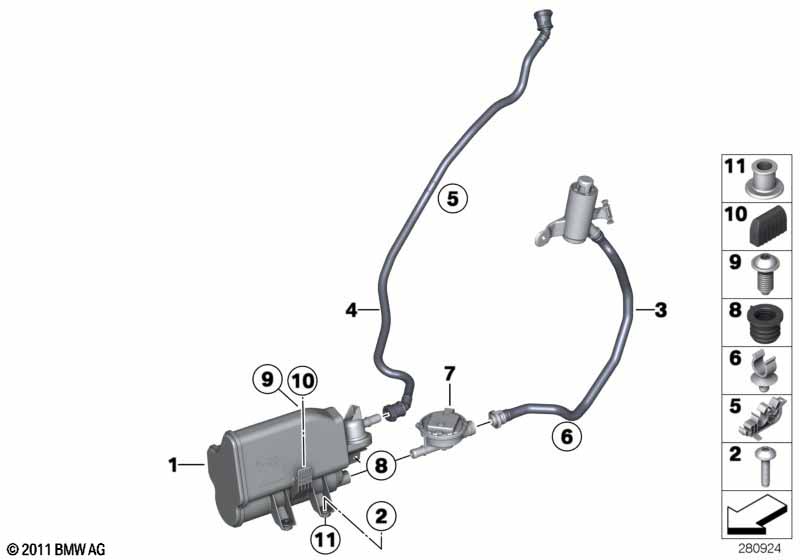

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 07/2016 | 16117301245 | |||||
| 01 | Activated Charcoal Filter | 1 | 07/2016 | 16137464301 | |||||
| 02 | ISA screw | MT6X25-10.9-ZNS | 2 | 12527610357 | |||||
| 03 | Vent pipe with dust filter | 1 | 11/2015 | 16137446752 | ENDED | ||||
| 03 | Vent pipe with dust filter | 1 | 16137438487 | ||||||
| 04 | breather line | 1 | 16127408415 | ||||||
| 05 | Triple clip | 3 | 11/2017 | 16127286140 | |||||
| 05 | Clip | D12 D16 D14-24 | 3 | 11/2017 | 07147468497 | ||||
| 06 | Tubing support | 1 | 13547714512 | ||||||
| 07 | Leak diagnosis module | 1 | 16137448092 | ||||||
| only in conjunction with | |||||||||
| -- | Vent pipe with dust filter | 1 | 16137438487 | ||||||
| 08 | Sealing grommet | 1 | 16131183912 | $2.08 | |||||
| 09 | screw for plastic | TS5X12-ZNS3 | 2 | 07147194471 | $0.34 | ||||
| 10 | Cap | 1 | 16131183918 | $3.32 | |||||
| 11 | Spacer bush | 2 | 16137299053 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
