3' F30 LCI 340i Retrofit kit trailer coupling detachable

Retrofit kit trailer coupling detachable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
It may be necessary to replace the
right-side engine mount. If the
Text Image Unit in Main Group 22
indicates 'rubber bushing, right'
for the optional trailer coupling
then this part number must also be
ordered and installed.
If no part number is indicated for the
optional trailer coupling then it
is not necessary to replace the
'rubber bushing, right.'
An exchange of the "Lüfterzarge mit
Lüfter" and "Kühlmittelkühler /
ausgelagerten Kühlmittelkühler"
may be necessary.
If on the picture panel in the main
group 17
there is a "Lüfterzarge mit Lüfter" and
"Kühlmittelkühler / ausgelagerten
Kühlmittelkühler" designated to the
OE trailer tow hitch,
then this part number
has to be ordered and installed as well.
With installed 20" OA wheels,
AHK retrofit must not be
performed.
For vehicles with
National version Australia


































L810A=No
Only together with rear muffler heat
shield

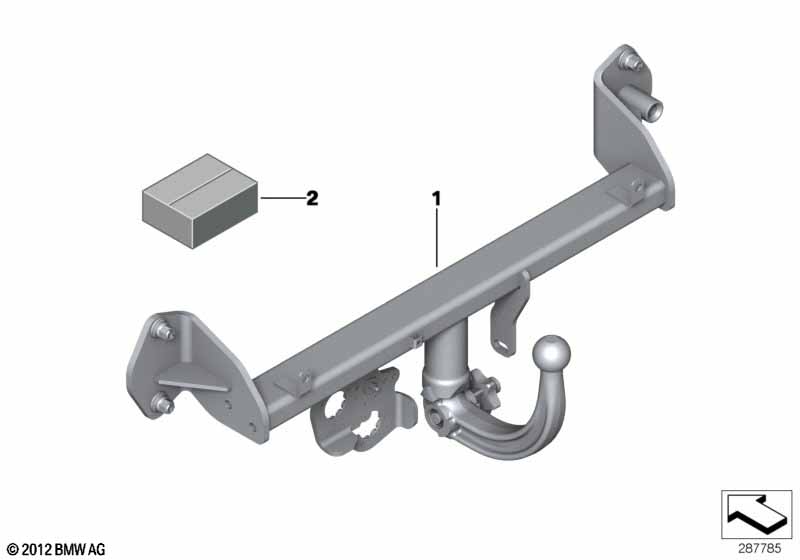

01 Scdel. of tow.hitch+detach.ball head 1 71606855719 EBA 2295849
only in conjunction with
-- Intermediate plate assy 2 71606878215
-- Washer-gasket 2 51127240917
02 Retrofit kit, electr. additional parts 1 03/2014 71602289552 EBA 2358045
only in conjunction with
-- Control unit for trailer hitch AAG-01 1 03/2014 71606884357 ENDED
-- Bracket for module 1 03/2014 66336854515
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
