3' F30 LCI 340i Rear bicycle carrier
Sponsored links
Sponsored links

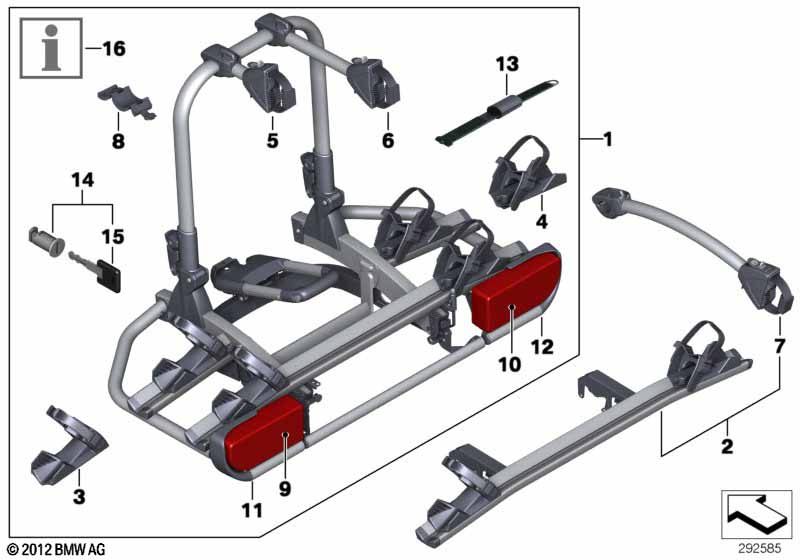

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Trailer tow hitch, height adjustable or Towing hitch, detachable or Trailer coupling or Trailer coupling |
S234A=Yes S235A=Yes S3ACA=Yes SV61A=Yes |
||||||||
| 01 | Rear bicycle carrier | 1 | 06/2014 | 82722211177 | ENDED | ||||
| max. bicycle length of 187 cm | |||||||||
| 02 | Expansion kit for 3rd bicycle | 1 | 82722220053 | ||||||
| only in conjunction with | |||||||||
| -- | Rear bicycle carrier 'Pro 2.0' | LHD | 1 | 82722287886 | |||||
| 03 | Wheelhousing liner, left | 1 | 82712220393 | ||||||
| 04 | Wheelhousing liner, right | 1 | 82712220392 | ||||||
| 05 | Spacer, short | 2011 | 1 | 82712220394 | |||||
| 06 | Spacer, medium | 2011 | 1 | 82712220397 | |||||
| 07 | Spacer, 3rd wheel rail | 2011 | 1 | 82712220398 | |||||
| 08 | Sleeve, support stand | 1 | 82712220399 | ||||||
| 09 | Rear light, left | 1 | 07/2016 | 82710421333 | $61.00 | ENDED, EBA 0418181 | |||
| 09 | Rear light, left | 1 | 82792449919 | EBA 0418181 | |||||
| 10 | Rear light, right | 1 | 07/2016 | 82710421332 | $61.00 | ENDED, EBA 0418181 | |||
| 10 | Rear light, right | 1 | 82792449920 | EBA 0418181 | |||||
| 11 | Lamp guard, left | 1 | 82710421335 | ||||||
| 12 | Lamp guard, right | 1 | 82710421334 | EBA 0418181 | |||||
| 13 | Ratchet strap | 1 | 82722159337 | ||||||
| 14 | Lock cylinder with key | 1 | 82720303536 | $24.75 | |||||
| 15 | Key (Code) | CODE 001...041 | 1 | 82720144049 | $8.50 | +core | |||
| 16 | Mounting information | 1 | 01292220234 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- EBA = Einbauanleitung (Installation instructions)
- +core = plus core charge (possibility of a return of the old part)
