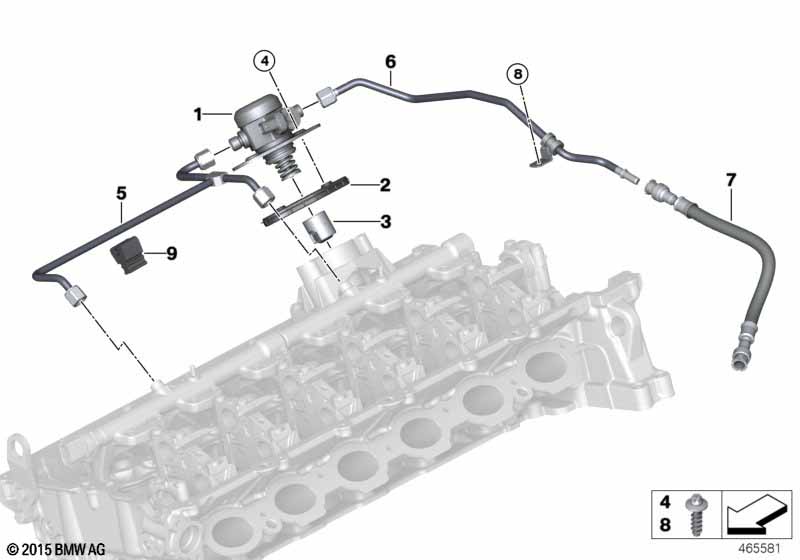

3' F30 LCI 340i High-pressure pump/Tubing
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure pump | 1 | 13517642466 | ||||||
| 02 | Profile-gasket | 1 | 11128633750 | ||||||
| 03 | Cam follower | 1 | 11327601233 | +core | |||||
| only in conjunction with | |||||||||
| -- | High pressure pipe | 1 | 13538605242 | ||||||
| -- | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | |||||
| -- | Profile-gasket | 1 | 11128633750 | ||||||
| 04 | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | |||||
| 05 | High pressure pipe | 1 | 08/2015 | 13538605242 | |||||
| 05 | High pressure pipe | 1 | 08/2015 | 13538605242 | |||||
| only in conjunction with | |||||||||
| -- | Rubber mount | 1 | 08/2015 | 13538656724 | |||||
| 06 | Supply line to engine compartment | 1 | 13538616080 | ||||||
| 07 | Fuel hose | 1 | 13538635510 | ||||||
| 08 | ASA screw, self-threading | M6X18 | 1 | 11367609963 | |||||
| 09 | Rubber mount | 1 | 13538656724 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
