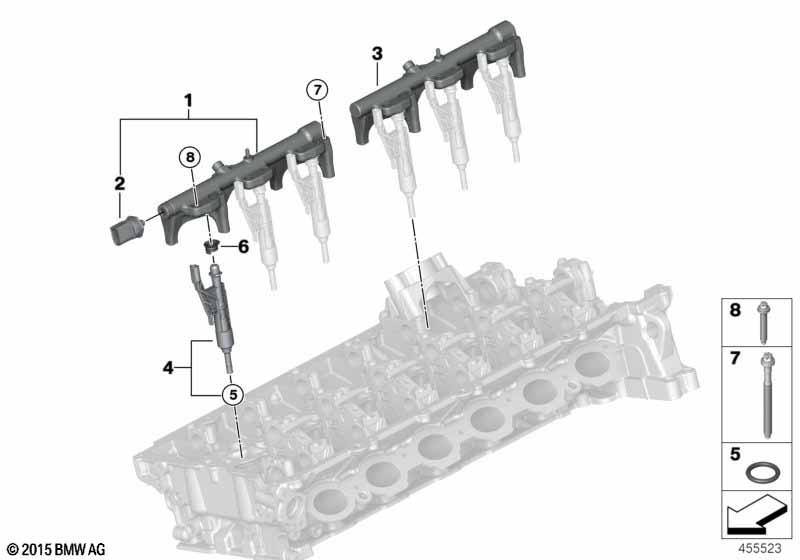

3' F30 LCI 340i High-pressure rail / injector
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Comply with repair instructions! Revised torque for injector removal. |
||||||||
| 01 | High-pressure rail | 1 | 10/2017 | 13537639975 | ENDED | ||||
| 01 | High-pressure rail | 1 | 13538694197 | ||||||
| 02 | Sensor, high-pressure | 1 | 13538643665 | ||||||
| 03 | High-pressure rail | 4-6 | 1 | 10/2017 | 13537643082 | ENDED | |||
| 03 | High-pressure rail | 4-6 | 1 | 13538665635 | |||||
| 04 | RP injector | 6 | 13538625396 | ||||||
| 05 | Gasket ring | 6 | 13537591006 | ||||||
| 06 | Bracket injector | 6 | 13538642294 | ||||||
| 07 | Star-socket screw | BM6X70-8.8 | 8 | 13538661715 | |||||
| 08 | Star-socket screw | BM5X30-10.9 | 12 | 03/2017 | 13629908054 | ||||
| 08 | Star-socket screw | 5X30-10.9 | 12 | 13538661716 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
