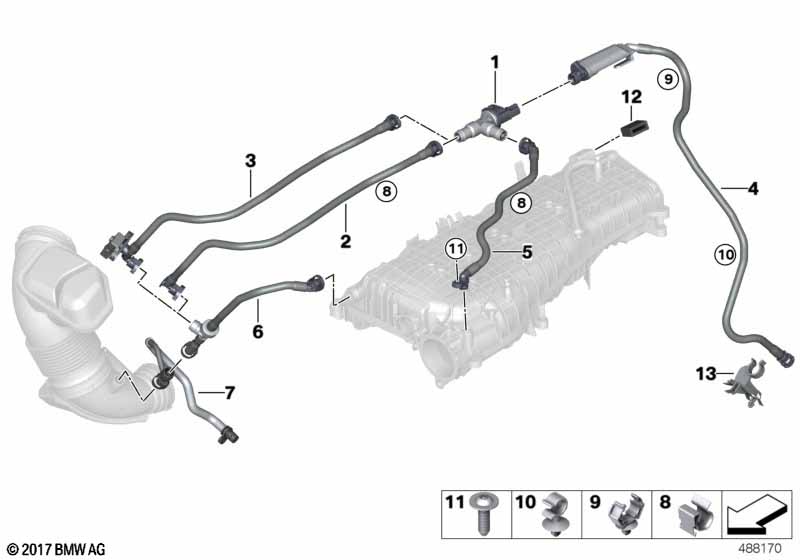

3' F30 LCI 340i Fuel tank breather valve
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 13907643106 | ||||||
| 02 | fuel tank breather line | 1 | 13907643104 | ||||||
| 04 | Fuel tank breath.line with resonator | 1 | 12/2015 | 13908607028 | ENDED | ||||
| 04 | Fuel tank breath.line with resonator | 1 | 13908663476 | ||||||
| 05 | fuel tank breather line | 1 | 13907643103 | ||||||
| 06 | Suction jet pump with line | 1 | 13907643100 | ||||||
| 07 | Vent pipe | 2 | 11158645343 | ||||||
| 08 | Fixing clamp | 1 | 12527578321 | $1.08 | |||||
| 09 | Tubing support | 1 | 13547714512 | ||||||
| 10 | Hose clamp | D=11-13MM | 1 | 32737714099 | |||||
| 11 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | ||||
| 13 | Tubing support | 1 | 11/2017 | 13908655622 |
Notes
- ENDED = the part has been discontinued (no longer available).
