3' F30 LCI 340i High-pressure pump/Tubing

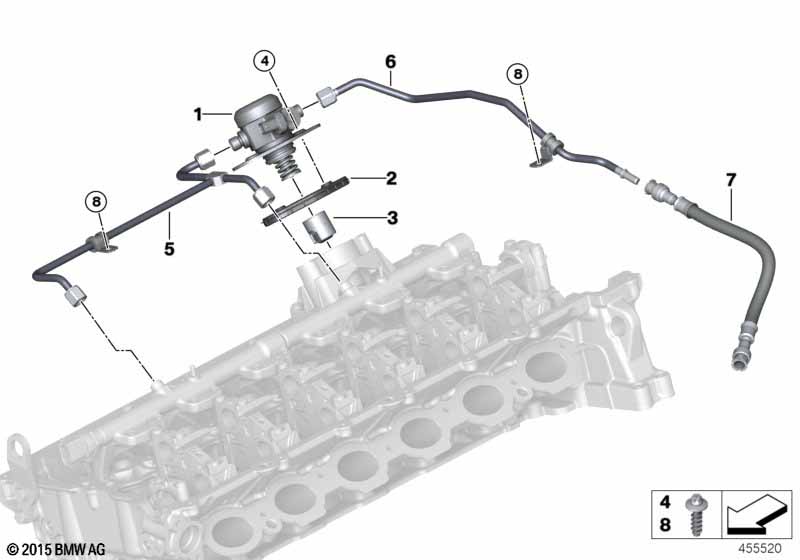

High-pressure pump/Tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 High-pressure pump 1 13517642466
02 Profile-gasket 1 11128633750
03 Cam follower 1 11327601233 +core
only in conjunction with
-- High pressure pipe 1 13538605242
-- Isa screw with washer M6X25-U1 2 13517632572
-- Profile-gasket 1 11128633750
04 Isa screw with washer M6X25-U1 2 13517632572
05 High pressure pipe 1 13538605242
06 Supply line to engine compartment 1 13538616080
07 Fuel hose 1 13538635510
08 ASA screw, self-threading M6X18 2 11367609963
Notes
  • +core = plus core charge (possibility of a return of the old part)
