3' F30 LCI 340i Exhaust system, rear

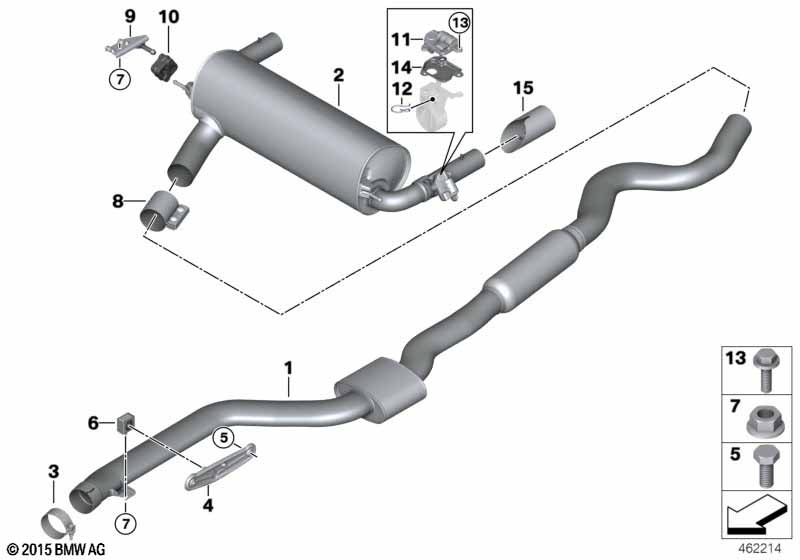

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front muffler 1 18308638781
For vehicles with
Exhaust emission standards EU6 RDE

S1DEA=Yes
01 Exchange petrol particulate filter 1 07/2018 18307933945
02 Rear muffler 1 18308650847
02 Rear muffler 1 07/2018 18308650847
02 Rear muffler 1 07/2018 18308650847
03 Muffler clamp D=80,0MM 1 07/2018 18308635798
For vehicles with
Exhaust emission standards EU6 RDE

S1DEA=Yes
03 Muffler clamp D=80,0MM 1 07/2018 18309884107
For vehicles with
Exhaust emission standards EU6 RDE

S1DEA=No
03 Muffler clamp D=80,0MM 1 07/2018 18308635798
04 Holder catalytic converter near engine 1 18208631945
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=Yes
04 Holder catalytic converter near engine 1 07/2015 18208632528 ENDED
04 Holder catalytic converter near engine 1 18208631947
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=No
04 Holder catalytic converter near engine 1 07/2015 18208632528 ENDED
04 Holder catalytic converter near engine 1 18208631947
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=No

S2TBA=Yes
04 Holder catalytic converter near engine 1 07/2015 18208632528 ENDED
04 Holder catalytic converter near engine 1 18208631947
05 Hex bolt M8X50-U1-ZNS3 2 07119907437
06 Rubber Mounting 1 03/2015 18308632096 ENDED
06 Transmission holder 1 18208631946
07 Hex nut M8-ZNS3 3 07119904024 $0.20
For vehicles with
Exhaust emission standards EU6 RDE

S1DEA=Yes
07 Hex nut M8-ZNS3 3 07119904024 $0.20
08 Clamping bush D=80MM 1 18307560815
For vehicles with
Exhaust emission standards EU6 RDE

S1DEA=Yes
08 Clamping bush D=80MM 1 07/2018 18307560815
09 Bracket, rear muffler right 1 18307620364
09 Bracket for rear silencer, left 1 18308632095
10 Rubber Mounting 2 18307616850
11 Actuator drive, exhaust flap 1 18308632154
12 Fixing bow 1 18307620323
13 Hex bolt M6X16 3 18308623584
14 Thermal protection 1 18307628041
15 Tailpipe tip, chrome 2 18307605041 +core
For vehicles with
Sport Line
or
Sport Line
or
M Sport
or
Individual option high-gloss Shadow-Line

P7ACA=Yes

P7B1A=Yes

P7B3A=Yes

S7M9A=Yes
15 Tailpipe tip, black chrome 2 18307610633 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
