3' F30 LCI 340i Clutch control

Select another car > Clutch > Clutch control

Sponsored links

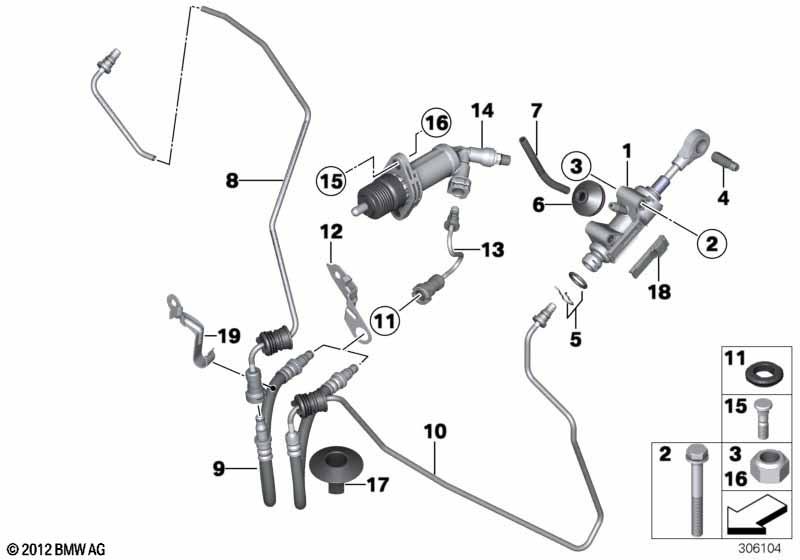

No.	Description	Supp.	Qty	From	Up To	Part Number	Price	Notes
i	For vehicles with Automatic transmission or Sport automatic transmission	S205A=No S2TBA=Yes
01	Input cylinder clutch		1		03/2016	21526773670	$141.70
01	Input cylinder clutch		1	03/2016		21526879477
01	Input cylinder clutch		1	03/2016	07/2018	21526879477
02	Hex bolt	M6X45 8.8 ZNS3	2			07119902976	$0.45
02	Hex bolt	M6X45 8.8 ZNS3	2		07/2018	07119902976	$0.45
03	Hex nut	M6-8-ZNNIV SI	2			07129905817
03	Hex nut	M6-8-ZNNIV SI	2		07/2018	07129905817
04	Pin, master cylinder		1			35316854283
04	Pin, master cylinder		1		07/2018	35316854283
05	Repair kit clutch plug-in connector		1			21521165451	$6.28
05	Repair kit clutch plug-in connector		1		07/2018	21521165451	$6.28
06	Grommet		1		11/2019	21526771100	$1.37
06	Grommet		1		07/2018	21526771100	$1.37
07	Hose	7.5X13.5	X			35006857512
07	Hose	7.5X13.5	X		07/2018	35006857512
10	Pipeline with pressure hose	LHD	1		11/2019	21526869276
10	Pipeline with pressure hose	LHD	1		07/2018	21526869276
11	Grommet		1		11/2019	21521164603	$2.93
11	Grommet		1		07/2018	21521164603	$2.93
12	Bracket, clutch line		1			21526765063	$1.02
12	Bracket, clutch line		1		07/2018	21526765063	$1.02
13	Connecting line		1		11/2019	21526864478
13	Connecting line		1		07/2018	21526864478
14	Clutch slave cylinder	D=22,20MM	1			21526795713
14	Clutch slave cylinder	D=22,20MM	1		07/2018	21526795713
15	Hex bolt	M8X25 8.8 ZNS3	2	04/2015		07119907207
15	Hex bolt	M8X25 8.8 ZNS3	2		07/2018	07119907207
17	Grommet		1		11/2019	21521163894	$1.72
17	Grommet		1		07/2018	21521163894	$1.72
	Observe PuMA measure 62335240
18	Module, clutch switch		1		11/2018	61319231129		ENDED
18	Module, clutch switch		1			35426876898
18	Module, clutch switch		1		07/2018	61319231129		ENDED
18	Module, clutch switch		1		07/2018	35426876898

Notes

ENDED = the part has been discontinued (no longer available).
