3' F30 LCI 340i Gearshift manual transmission

Sponsored links

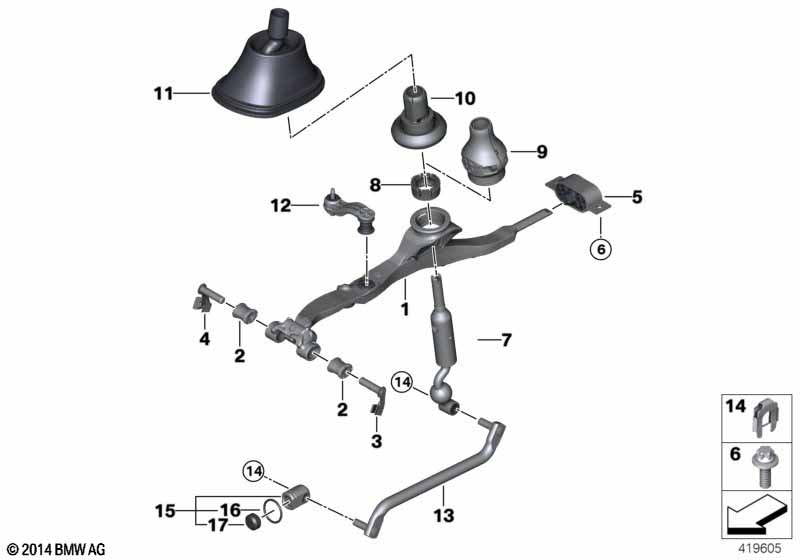

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
i	For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles	S205A=No S2TBA=No S2TEA=No
01	Shifting arm		1		07/2018	25118608238
02	Bush bearing oval	L=26MM/SCHWARZ	2		07/2018	25117507695	$2.93
03	Bolt		1		07/2018	25117529078	$5.23
04	Bolt		1		07/2018	25117529079	$5.23
05	Bearing, shifting arm		1		07/2018	25118614288
06	Star-socket screw	M6X16-8.8-ZNS3	2		07/2018	07119907242
07	Shift lever		1		07/2018	25117596703
08	Bearing, shift lever		1		07/2018	25111220600	$10.33
11	Rubber boot		1		07/2018	25117596026			+core
13	Selector rod		1		07/2018	25118608240
14	Securing clip		2		07/2018	25117571899	$0.66
15	Gearshift rod joint		1		07/2018	25117580281	$15.10
16	Lock Ring		1		07/2018	25111222451	$0.33
17	Plastic washer		1		07/2018	25111434194	$0.85

Notes

• +core = plus core charge (possibility of a return of the old part)
