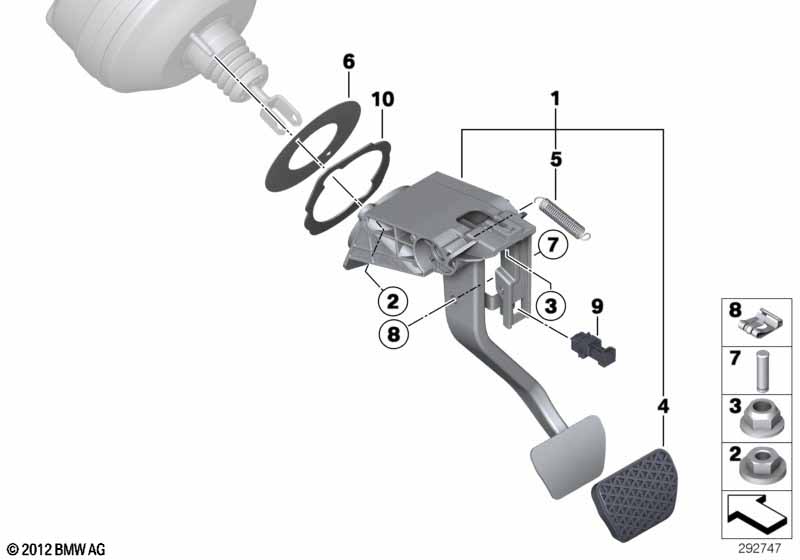

3' F30 LCI 340i Pedal assembly, automatic transmission
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete pedal assembly | 1 | 07/2018 | 35006860647 | |||||
| No further intervention permitted | |||||||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07/2018 | 07119905374 | ||||
| Mount Supporting bracket |
|||||||||
| 03 | Self-locking hex nut | M6-8-ZNNIV SI | 1 | 07/2018 | 07119905949 | $0.24 | |||
| Mount Supporting bracket |
|||||||||
| 04 | Rubber pad | B=100MM | 1 | 07/2018 | 35211160421 | $4.47 | |||
| BRAKE PEDAL | |||||||||
| 05 | Return spring | D=13MM | 1 | 07/2018 | 35301165321 | $0.93 | |||
| BRAKE PEDAL | |||||||||
| 06 | Seal, brake booster | 1 | 07/2018 | 34336857618 | |||||
| 07 | Brake pedal pin | D=10X29,5 | 1 | 07/2018 | 34336753646 | $1.67 | |||
| Mount POWER BRAKE UNIT |
|||||||||
| 08 | Fuse | B10-ZNS3 | 1 | 07/2018 | 07129904567 | $0.40 | |||
| Mount POWER BRAKE UNIT |
|||||||||
| 09 | Stop light switch | 1 | 07/2018 | 35006876896 | |||||
| 10 | Sound insulating pedal mecanism | 1 | 07/2018 | 35004082082 | ENDED | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
