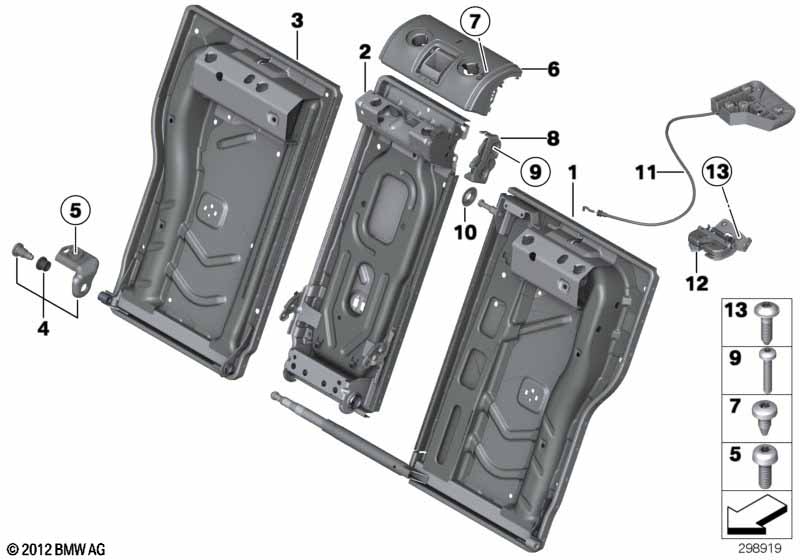

3' F30 LCI 340i Seat, rear, seat frame, load-through
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Through-loading system |
S465A=Yes |
|||||||
| 01 | Frame, backrest left | 1 | 52207267863 | ||||||
| 02 | Frame Backrest central | 1 | 52207274534 | ||||||
| 03 | Frame, backrest right | 1 | 52207267864 | ||||||
| 04 | Bracket backrest outer left | 1 | 52207308099 | ||||||
| 04 | Bracket backrest outer right | 1 | 52207308100 | ||||||
| 05 | Fillister head screw | M10X22 | 2 | 07149148299 | |||||
| 06 | Actuation unit | 1 | 52207277857 | ||||||
| 07 | Oval-head machine screw, self-threading | M5X10-ZNNID SW | 2 | 07146777838 | $0.36 | ||||
| 08 | Lock | 1 | 52207237660 | ||||||
| 09 | Fillister head screw | M8X30 | 2 | 52207266275 | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
||||||||
| 10 | Cover | OYSTER | 1 | 52207295734 | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
||||||||
| 10 | Cover | VENETOBEIGE | 1 | 52207311332 | |||||
| For vehicles with Fabric Move/anthracite or Fabric Move/amber or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
BDAT=Yes BDLI=Yes BEL1=Yes BEL2=Yes CBAT=Yes HAAT=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLZ=Yes LCSW=Yes |
||||||||
| 10 | Cover | SCHWARZ | 1 | 52207295733 | |||||
| 11 | Unlocking unit | 2 | 11/2016 | 52207283922 | +core | ||||
| 11 | Bowden cable release | 2 | 52207392145 | ||||||
| 12 | Lock left | 1 | 52207112863 | $35.49 | +core | ||||
| 12 | Lock right | 1 | 52207112864 | $35.49 | +core | ||||
| 13 | Hex bolt | M8X12 | 4 | 07119907416 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
