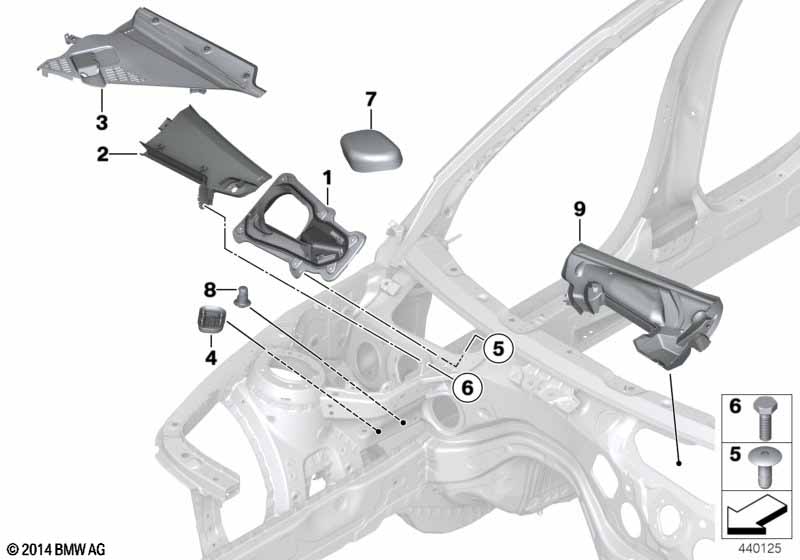

3' F30 LCI 340i Various grommets / covers
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Seal frame, bulkhead | 1 | 64319295461 | ||||||
| 02 | Attachment for partition | 1 | 64119297729 | ||||||
| 03 | Cover for units compartment | 1 | 07/2015 | 64319206485 | ENDED | ||||
| 03 | Right apron cover | LHD | 1 | 64319353042 | |||||
| 04 | Grommet, floor | 2 | 64319324831 | ||||||
| 05 | Blind rivet | 6 | 07149280715 | ||||||
| 06 | Hex bolt | M6X20-U2-8.8 | 2 | 07119903995 | $0.53 | ||||
| 07 | Air-intake screen | LHD | 1 | 64319321616 | |||||
| 08 | Grommet for emergency water drainage | 1 | 64319338798 |
Notes
- ENDED = the part has been discontinued (no longer available).
