3' F30 LCI 340iX Transmission oil cooler/oil cooler line

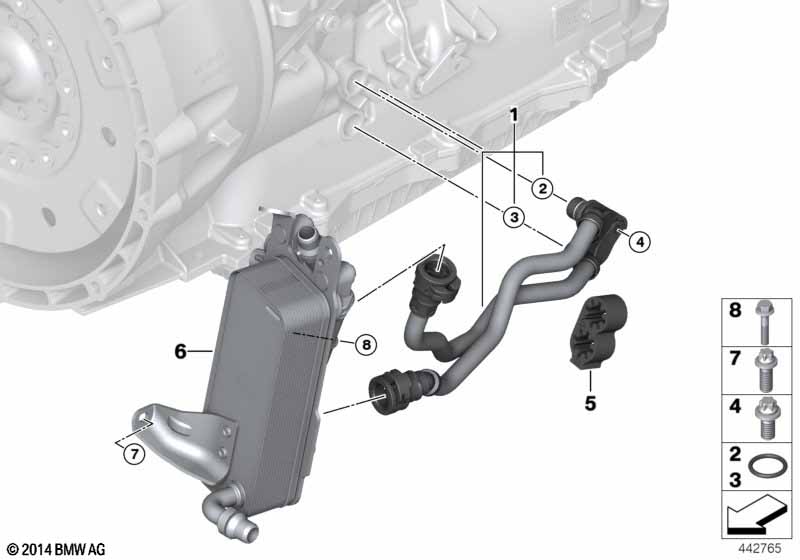

Transmission oil cooler/oil cooler line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Automatic transmission
or
Sport automatic transmission

S205A=Yes

S2TBA=Yes
01 Transmission oil cooler line 1 17228570449
02 O-ring 13,4X1,78 2 17228573882
03 O-ring 13,4X1,78 2 17228573882
04 Star-socket screw M6X20-U1-8.8 1 07119908574
05 Dual clip 1 17228575821
06 Transmission oil cooler 1 17218570062
07 Star-socket screw M6X16-ZNNIV SI 1 07119907463
08 Hex bolt M6X30 2 07119904400
