3' F30 LCI 330e Guide support/spring pad/attaching parts

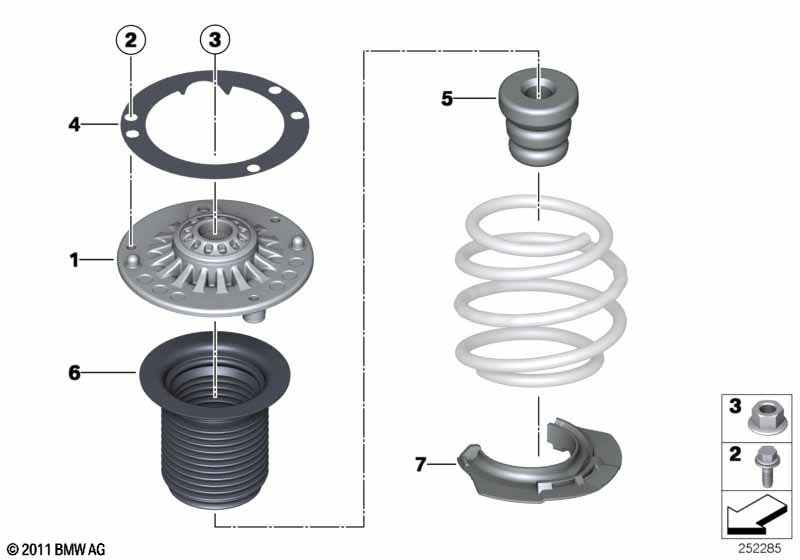

Guide support/spring pad/attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Guide support AUFNAHME 6XM8 2 31306881929
only in conjunction with
-- Hex bolt with washer M8X30-10.9 10 31306869931
02 Hex bolt with washer M8X30-10.9 10 31306869931
03 Self-locking collar nut M12X1,5-10 ZNS3 2 33326760668 $0.62
Note Repair Manual
The sealing washer is no longer required
04 Read comments and instruct. carefully! 2 01104444444 ENDED
05 Additional shock absorber, front 2 31336855440
06 Spring pad with guard tube, top 2 31306791712
07 Spring pad lower 2 31336787114
Notes
  • ENDED = the part has been discontinued (no longer available).
