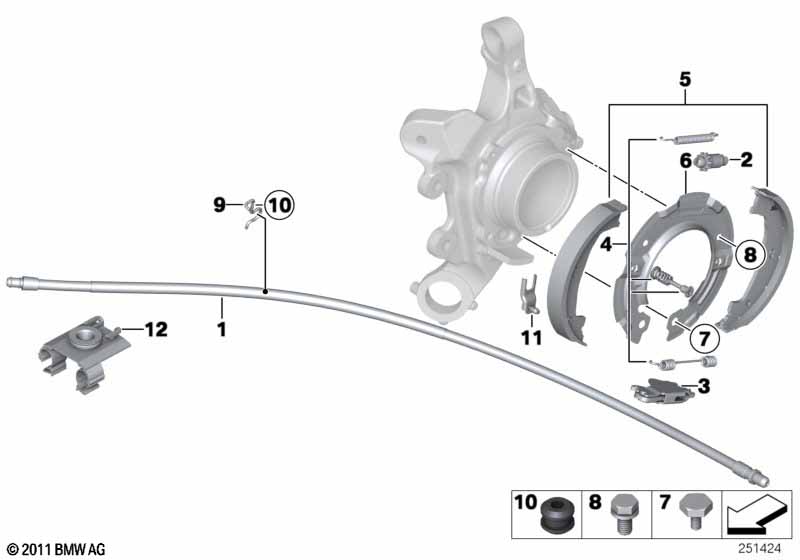

3' F30 LCI 330e Parking brake / brake shoes

Parking brake / brake shoes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The following components are vital and
mandatory for brake shoe replacements:
spring repair kit
brake shoe expander
adjustment screw
01 Hand brake bowden cable 2 34406792268
For vehicles with
Hot-climate version

S823A=Yes
01 Hand brake bowden cable 2 34406857640
02 Adjusting screw 2 34416851437
03 Expanding lock 2 34416851439
04 Repair kit springs 1 34410410825 $25.37
05 Repair kit brake shoe asbestos-free 1 34416761292 $92.33
06 Supporting ring brake shoe D=185MM 2 34216771430 $4.70
07 Hex bolt M8 4 34211164044 $1.03
08 Hex bolt with washer M6X12-U1 4 07119904511 $0.62
09 Hand brake bowden cable bracket 2 34406797034
10 Grommet 2 34401165291 $0.57
11 Spring clip 2 34406851831 +core
12 Clip retainer 1 16117451410
Notes
  • +core = plus core charge (possibility of a return of the old part)
