3' F30 LCI 330e Individ.through-loading syst.,rear seat

Individ.through-loading syst.,rear seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.
- (A) Part number for leather
- (B) Part number for braided leather
- (C) Color specification for piping
- (D) Color specification for thread
---------------------------
Version: only in leather Merino
For vehicles with
special trim (without colour statement)
or
Indi. leather, extended/kaschmir-beige
or
Indi. leather, extended/kaschmir-beige
or
Indi. leather extended/opal-weiss
or
Indi. leather extended/opal-weiss
or
Indi. leather, extended/amaro-braun
or
Indi. leather extended/black
or
Indi. leather extended/black
or
Indi. leather expanded /"cohiba"




























Z1XX=Yes

ZAKO=Yes

ZAKS=Yes

ZAOO=Yes

ZAOW=Yes

ZAP5=Yes

ZASM=Yes

ZASW=Yes

ZAWT=Yes

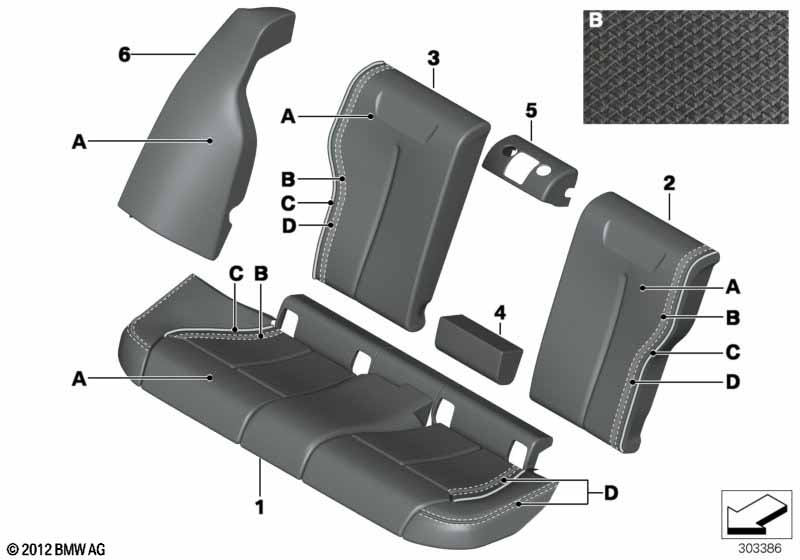

01 Leather seat cover, rear INDIVIDUAL 1 07/2015 52207989721 NoS
For vehicles with
Through-loading system

S465A=Yes
02 Cover backrest, leather, rear left INDIVIDUAL 1 07/2012 52207985187 NoS
03 Cover backrest, leather, rear right INDIVIDUAL 1 07/2012 52207985186 NoS
04 Cover, backrest, leather, center lower INDIVIDUAL 1 07/2012 52207985184 NoS
05 Cover, backrest, leather, center upper INDIVIDUAL 1 07/2012 52207985185 NoS
06 Lateral trim panel right INDIVIDUAL 1 07/2012 52207985190 NoS
06 Lateral trim panel left INDIVIDUAL 1 07/2012 52207985191 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
