3' F30 LCI 318i Trim, windshield cowl, outer

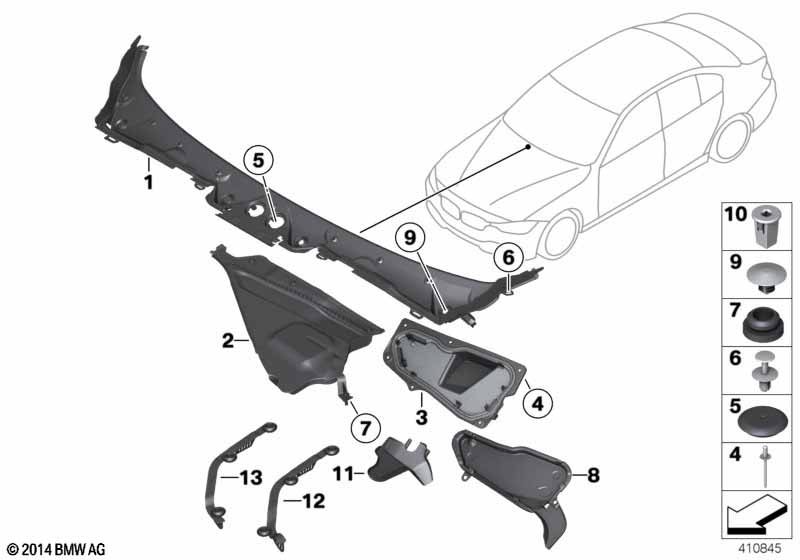

Trim, windshield cowl, outer
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, windshield RHD 1 51717258178
02 Right apron cover RHD 1 07/2015 51717405639
03 Wiper tray RHD 1 51717232822 +core
04 Blind rivet 6 07149280715
05 Plug D=40MM 1 07147255351
06 Expanding rivet X 16136753087 $0.35
07 Grommet 2 64538391408 $0.81
08 Cover plate for wiper tray 1 51717354546
09 Plug, black D=6,35MM 2 51488114499 $0.56
10 Expanding nut L=15MM, DMAX=12 X 07146976114 $0.09
11 Water drain for wiper shaft RHD 1 51717353217
12 Leaf grill, left 1 51717402081
12 Leaf grill, right 1 51717402082
Notes
  • +core = plus core charge (possibility of a return of the old part)
